Product image

ASUS Prime B760M-K Intel B760 LGA 1700 mATX motherboard with PCIe 4.0, 2x PCIe 4.0 M.2 slots, DDR5, Realtek 2.5Gb Ethernet, VGA, HDMI, SATA 6 Gbps, front USB 3.2 Gen 1, Aura Sync | 90MB1FI0-M0EAY0

FromOMR 46.987
ASUS Prime B760M-K Intel B760 LGA 1700 mATX motherboard with PCIe 4.0, 2x PCIe 4.0 M.2 slots, DDR5, Realtek 2.5Gb Ethernet, VGA, HDMI, SATA 6 Gbps, front USB 3.2 Gen 1, Aura Sync | 90MB1FI0-M0EAY0—
OMR 46.987

  • Fast delivery

    Ships in 2–4 business days across Oman.

  • Easy returns

    30-day money-back guarantee, no fuss.

  • Secure checkout

    Encrypted payments you can trust.

Description

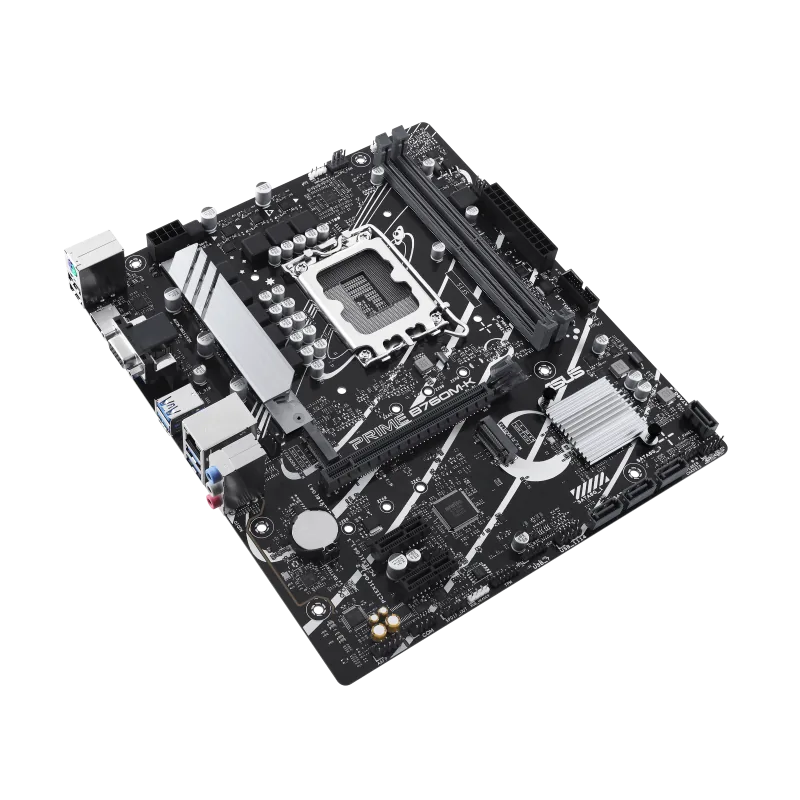

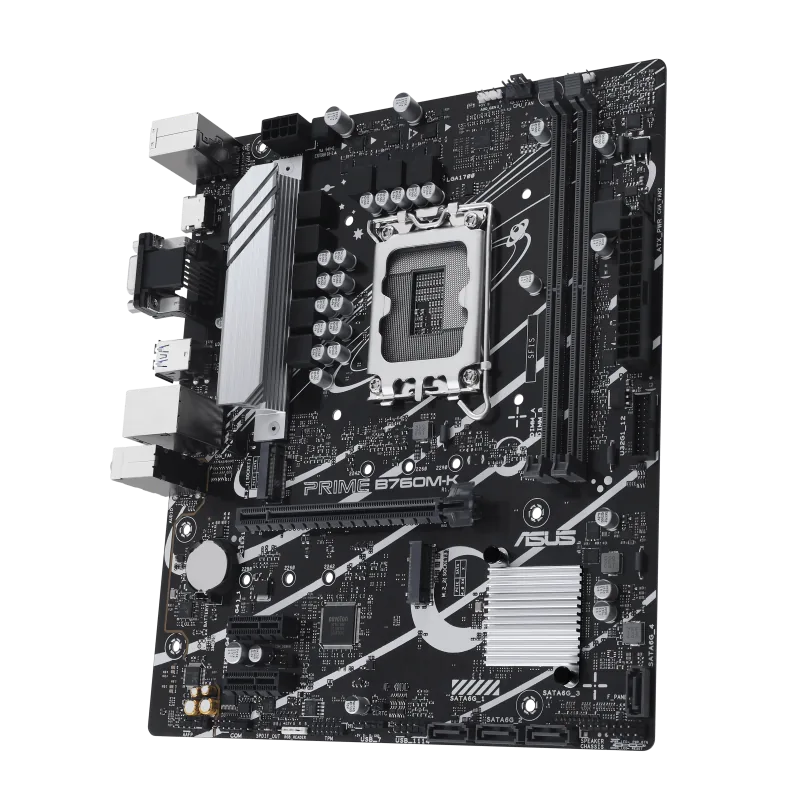

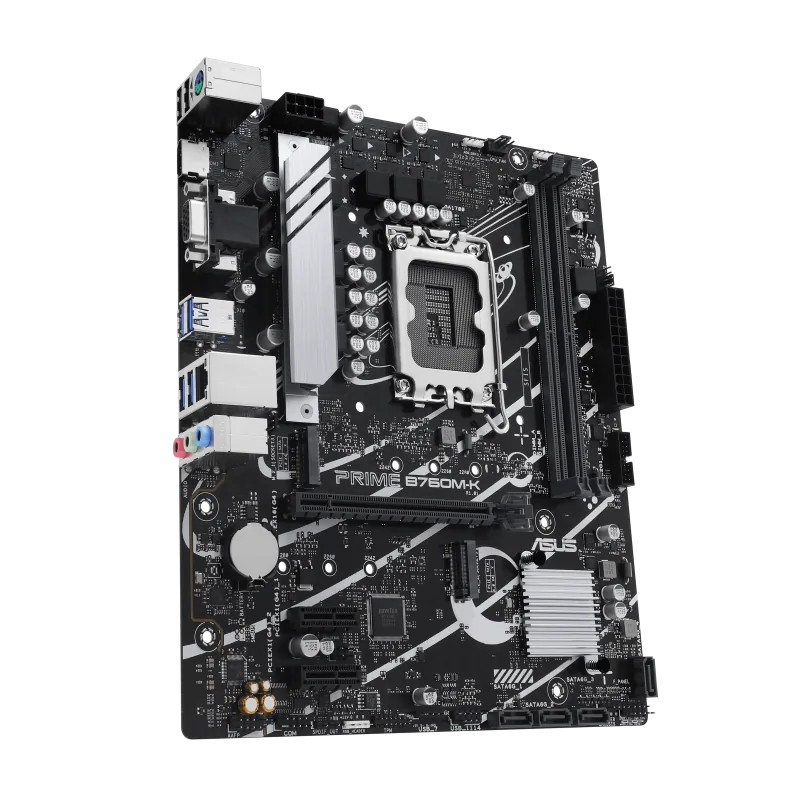

ASUS Prime B760M-K Intel B760 LGA 1700 mATX motherboard OVERVIEW IMAGE

The Prime B760M-K is engineered to bring out the best in Intel’s hybrid architecture. Built on the Intel B760 chipset, it provides a rock-solid foundation for everyday users and DIY PC builders. Despite its compact Micro-ATX form factor, it doesn't compromise on speed, offering native support for the latest DDR5 memory modules which provide a significant bandwidth jump over previous generations.


Advanced Thermal Design and Stability
To ensure consistent performance under load, the Prime B760M-K is equipped with several thermal management features. It includes a dedicated VRM heatsink and thermal pads to keep the power delivery components cool. With Fan Xpert software, users can monitor and control system temperatures in real-time, allowing the fans to stay quiet during standard tasks and ramp up only when the system is under heavy computational load.


Next-Gen Speed: DDR5 & Dual PCIe 4.0 M.2
Move past the limitations of older hardware with integrated support for DDR5. This motherboard features ASUS AEMP II (ASUS Enhanced Memory Profile) to help you easily optimize memory performance. Storage is handled by two M.2 slots, both supporting PCIe 4.0 speeds up to 64Gbps. This ensures that your operating system boots in seconds and your most-used applications launch almost instantly.


Connectivity and 2.5Gb Networking
Networking is a standout feature of this board, as it includes a Realtek 2.5Gb Ethernet port. This provides a wired connection that is 2.5 times faster than standard Gigabit, ensuring smooth video calls, fast file transfers, and lag-free gaming. For display flexibility, it includes both HDMI 2.1 for modern 4K monitors and VGA for legacy display support, making it highly versatile for various office and home environments.


Why the ASUS Prime B760M-K Stands Out
LGA 1700 Ready: Full support for Intel 14th, 13th, and 12th Gen Core processors.

DDR5 Support: High-frequency memory support for a more responsive system.

Dual M.2 PCIe 4.0: Rapid storage options for ultra-fast data access.

2.5Gb Ethernet: Superior networking bandwidth compared to standard budget boards.

67

Specifications

SKUMB-ASU PRIME B760M-K DDR5
CPUIntel® Socket LGA1700 for 14th, 13th & 12th Gen Intel® Core™ Processors* Supports Intel® Turbo Boost Technology 2.0 & Turbo Boost Max Technology 3.0
USBRear: 4 x USB 3.2 Gen 1 (5G) Type-A, 2 x USB 2.0 Type-A Front: 2 x USB 3.2 Gen 1 (via 1 header), 3 x USB 2.0 (via 2 headers)
AudioRealtek 7.1 Surround Sound High Definition Audio CODEC Audio Shielding, Premium capacitors, Dedicated PCB layers Supports up to 24-Bit/192 kHz playback
ModelPRIME B760M-K
Memory2 x DIMM slots, Max. 96GB, DDR5 Up to 8000(OC) MHz Non-ECC, Un-buffered Memory* Dual Channel Architecture, Intel® Extreme Memory Profile (XMP) *Supports On-Die ECC function.
ChipsetIntel® B760 Chipset
StorageTotal supports 2 x M.2 slots and 4 x SATA 6Gb/s ports - M.2_1 (CPU): PCIe 4.0 x4 mode (2242/2260/2280) - M.2_2 (Chipset): PCIe 4.0 x4 mode (2242/2260/2280) - 4 x SATA 6Gb/s ports (Supports RAID 0/1/5/10)
Ethernet1 x Realtek 2.5Gb Ethernet
Graphics1 x HDMI® 2.1 (Supports 4K@60Hz) 1 x VGA port (D-Sub)
Form FactormATX Form Factor: 9.6 inch x 8.3 inch (24.4 cm x 21.1 cm)
Internal I/O1x CPU Fan (4-pin), 2x Chassis Fans (4-pin), 1x 24-pin Main Power, 1x 8-pin +12V Power, 2x Addressable Gen 2 headers, 1x Aura RGB header, 1x COM Port, 1x S/PDIF Out

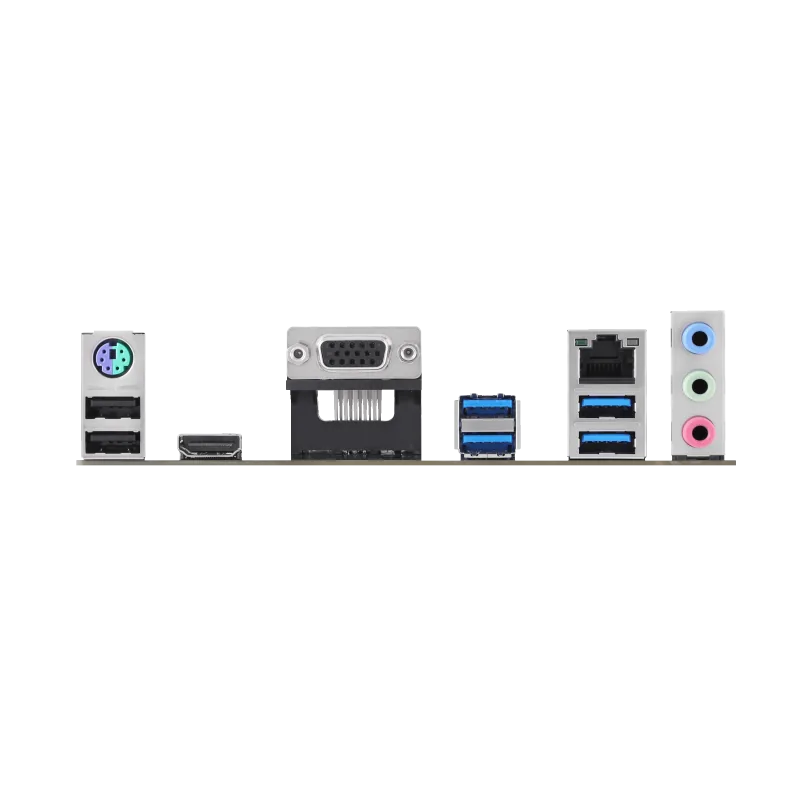

Back Panel I/O4x USB 3.2 Gen 1, 2x USB 2.0, 1x HDMI, 1x VGA, 1x 2.5Gb Ethernet, 3x Audio jacks, 1x PS/2 Combo port
Expansion SlotsIntel® Processors: 1 x PCIe 4.0 x16 slot Intel® B760 Chipset: 2 x PCIe 4.0 x1 slots
Source Categorycore-components/motherboards
Operating SystemWindows® 11, Windows® 10 64-bit
Special FeaturesASUS 5X PROTECTION III (DIGI+ VRM, LANGuard, SafeSlot Core), ASUS Q-Design (Q-DIMM, Q-LED Core, Q-Slot), VRM Heatsink, Aura Sync
