ASUS ROG Strix B760-I Gaming WIFI Mini-ITX Motherboard, Intel LGA1700, DDR5, PCIe 5.0, 2.5Gb LAN, Wi-Fi 6E, Dual M.2, Aura Sync RGB | 90MB1D90-M1EAY0

FromOMR 87.906
ASUS ROG Strix B760-I Gaming WIFI Mini-ITX Motherboard, Intel LGA1700, DDR5, PCIe 5.0, 2.5Gb LAN, Wi-Fi 6E, Dual M.2, Aura Sync RGB | 90MB1D90-M1EAY0—
OMR 87.906
  • Fast delivery

    Ships in 2–4 business days across Oman.

  • Easy returns

    30-day money-back guarantee, no fuss.

  • Secure checkout

    Encrypted payments you can trust.

Description

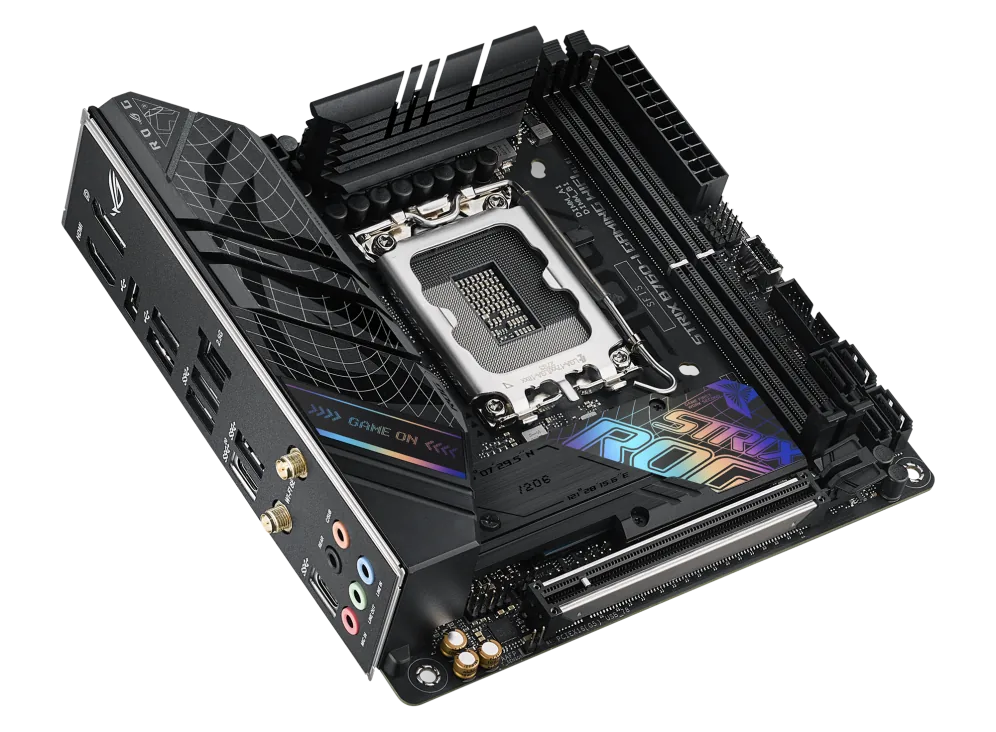

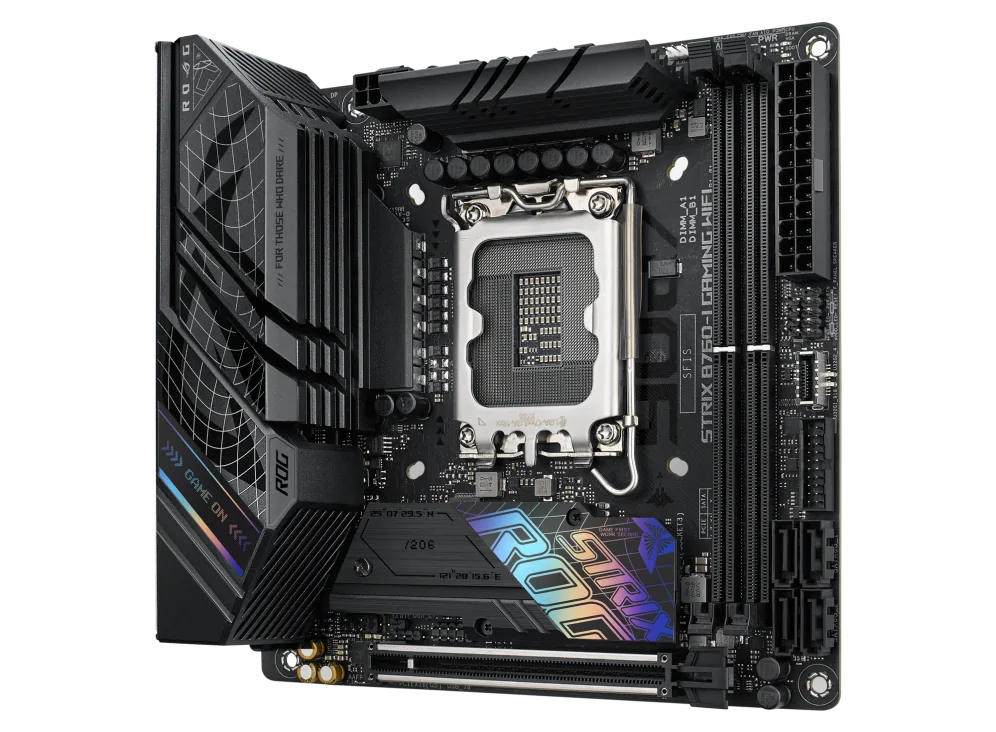

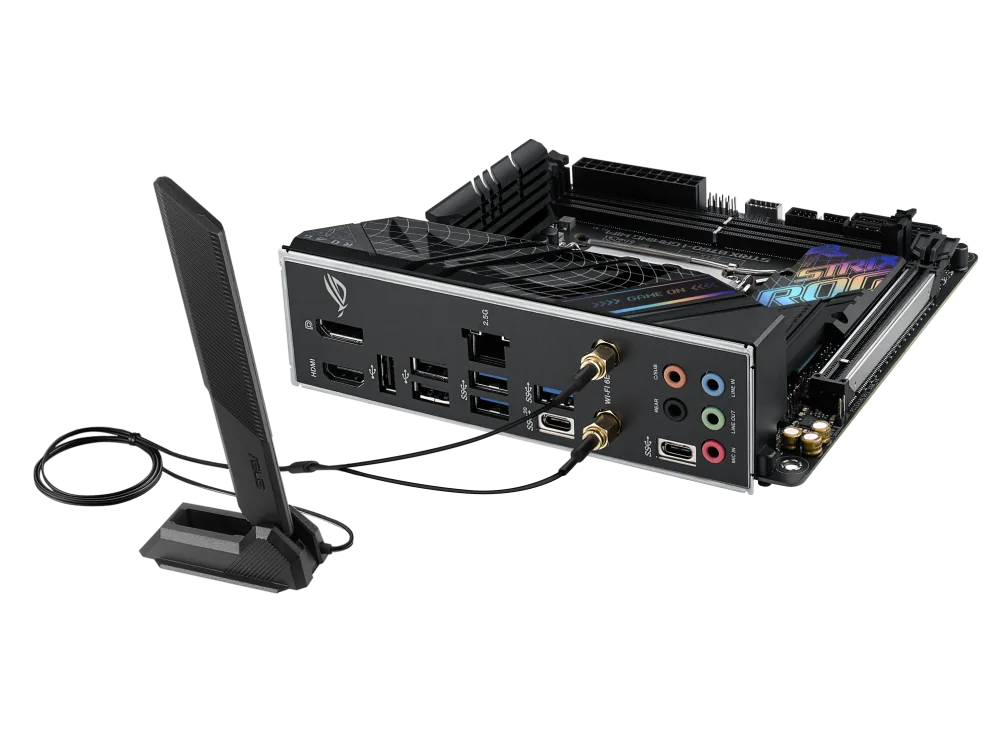

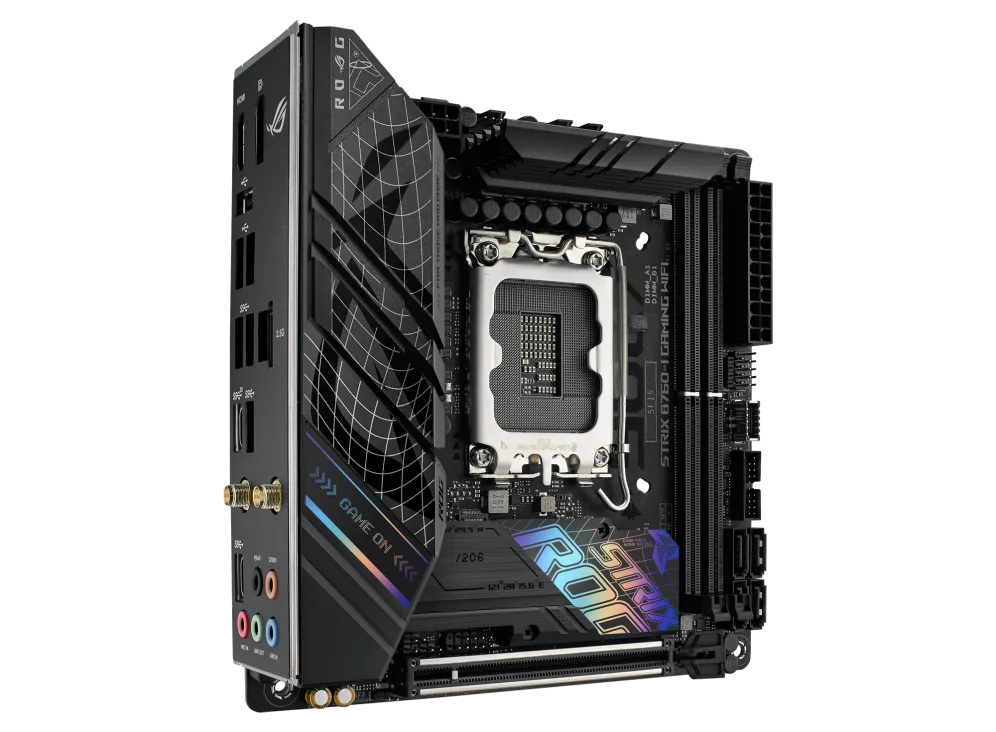

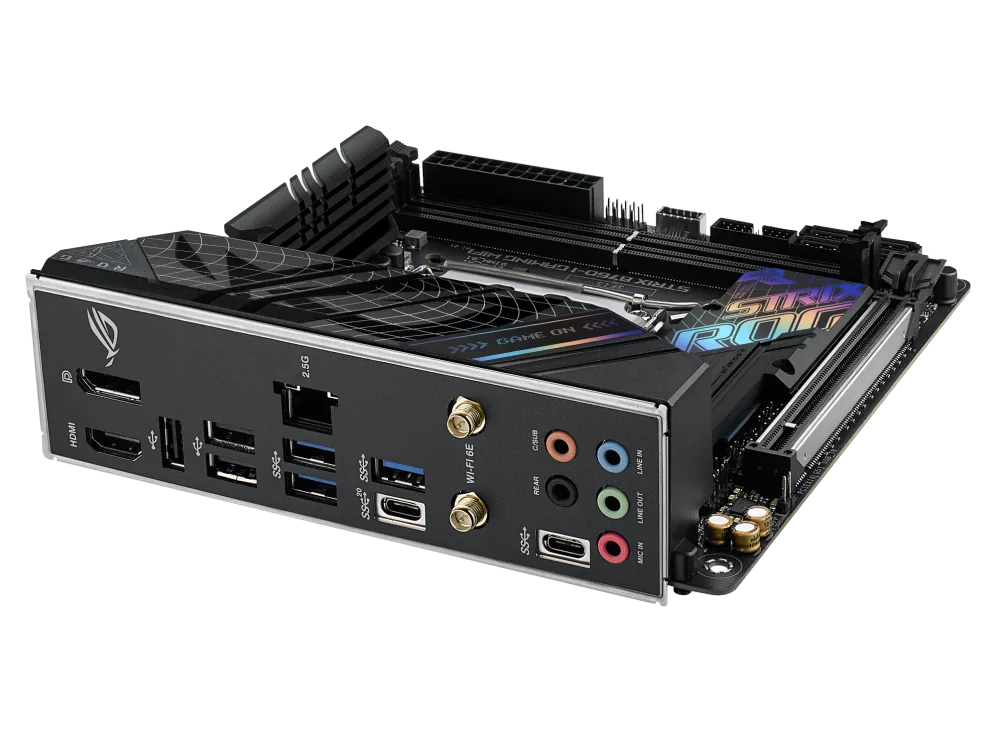

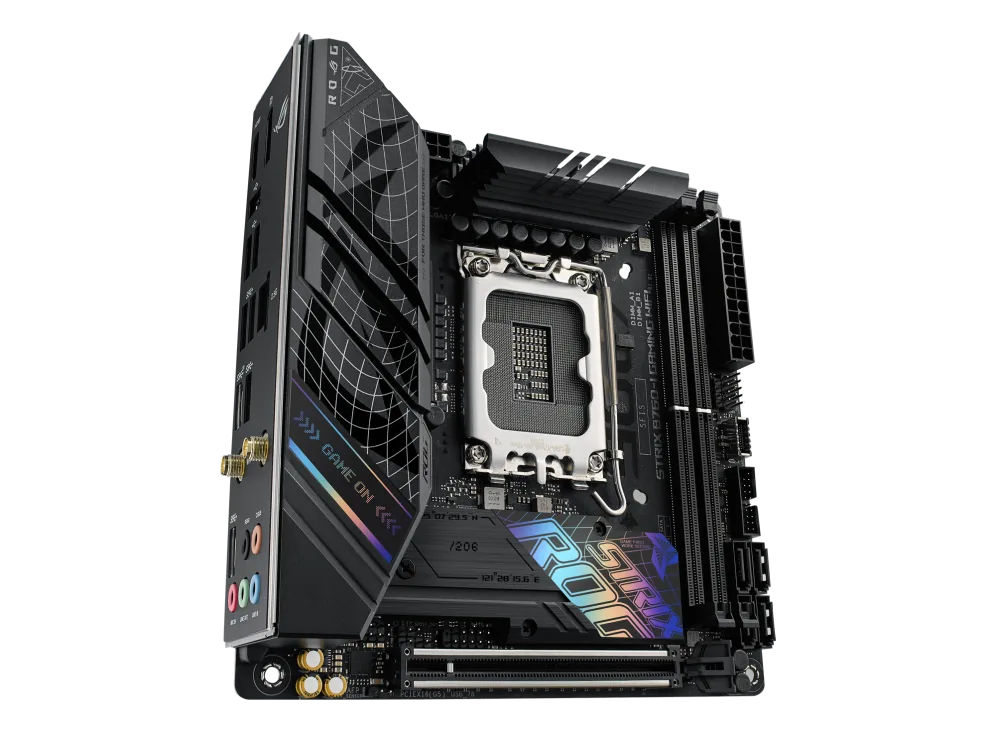

ASUS ROG Strix B760-I Gaming WIFI DDR5 Mini-ITX Motherboard Product overview image
ASUS ROG Strix B760-I Gaming WIFI DDR5 Mini-ITX Motherboard Product overview image
ASUS ROG Strix B760-I Gaming WIFI DDR5 Mini-ITX Motherboard Product overview image
ASUS ROG Strix B760-I Gaming WIFI DDR5 Mini-ITX Motherboard Product overview image

The ASUS ROG Strix B760-I Gaming WIFI (90MB1D90-M1EAY0) is the ultimate choice for gamers who want a powerful PC without the bulk. By utilizing the Intel B760 chipset, this Mini-ITX board offers the perfect balance between premium features and efficiency, allowing you to build a desktop-grade gaming machine that fits into ultra-compact chassis.

Memory & Storage: Next-Gen DDR5 and Dual M.2
Break speed barriers with support for DDR5 memory modules, significantly increasing data bandwidth compared to previous generations. For storage, the board features dual M.2 slots, both of which support PCIe 4.0 speeds, ensuring lightning-fast boot times and game loads. One slot even features an integrated heatsink to maintain optimal temperatures for high-speed NVMe drives.


Connectivity: Low Latency, High Speed
The ROG Strix B760-I is built for online dominance. It features Intel 2.5Gb Ethernet for a stable, lag-free wired connection and the latest Wi-Fi 6E technology, which unlocks the 6GHz band for faster wireless speeds and reduced congestion in crowded environments. With a vast array of USB ports, including USB 3.2 Gen 2x2 Type-C, connecting your high-speed peripherals is easier than ever.


Power & Cooling: ROG Engineering Excellence
To handle the demands of modern multi-core processors, the board is equipped with an 8+1 power stage solution and high-quality alloy chokes. The VRM is shielded by a thick, high-conductivity heatsink, ensuring the system remains stable even during the most grueling gaming marathons.


Why This Motherboard Stands Out
PCIe 5.0 Ready: Future-proof your build with support for the next generation of high-bandwidth graphics cards.

Two-Way AI Noise Cancelation: Crystal-clear communication for streaming and team chat.

SupremeFX Audio: High-fidelity sound with the ALC4080 codec and Savitech SV3H712 amplifier.

Aura Sync RGB: Customize your rig with Addressable Gen 2 headers and ASUS-exclusive lighting effects.



Specifications

SKUMB-ASUS B760-I GAMIN WIFI
BIOS128Mb Flash ROM, UEFI AMI BIOS CrashFree BIOS 3, EZ Flash 3, MemTest86
AudioROG SupremeFX 7.1 Channel (S1220A CODEC) 120 dB SNR Playback / 113 dB SNR Recording Supports 32-bit / 192 kHz Playback Savitech SV3H712 AMP DTS® Sound Unbound
ModelROG STRIX B760-I GAMING WIFI
Memory2 x DIMM, Max 96GB DDR5 Up to 7600MHz (OC) Dual Channel Architecture Intel® XMP Support OptiMem II
ChipsetIntel® B760
Storage2 x M.2 (PCIe 4.0 x4) 4 x SATA 6Gb/s Supports Intel® Rapid Storage RAID 0/1/5/10
CategorySpecification
Ethernet1 x Intel® 2.5Gb Ethernet (ASUS LANGuard)
SoftwareArmoury Crate AI Suite 3 Fan Xpert 4 Sonic Studio III Norton 360 for Gamers WinRAR
USB (Rear)1 x USB 3.2 Gen 2x2 Type-C® 4 x USB 3.2 Gen 1 (3 x Type-A + 1 x Type-C®) 3 x USB 2.0
CPU SupportIntel® Socket LGA1700 Supports Intel® Core™ 14th / 13th / 12th Gen Processors Pentium® Gold & Celeron® Processors Supports Intel® Turbo Boost 2.0 & Turbo Boost Max 3.0
Form FactorMini-ITX 6.7” x 6.7” (17 cm x 17 cm)
USB (Front)1 x USB 3.2 Gen 2 Type-C® header 1 x USB 3.2 Gen 1 header (2 ports) 1 x USB 2.0 header (2 ports)
Back Panel I/OUSB Ports (8 total) 1 x HDMI® 1 x DisplayPort 1 x Wi-Fi Module 1 x Intel® 2.5Gb Ethernet 5 x Audio Jacks
Expansion Slots1 x PCIe 5.0 x16 slot
Source Categorycore-components/motherboards/intel-motherboards
Graphics Outputs1 x DisplayPort 1.4 (4K@60Hz) 1 x HDMI® 2.1 (4K@60Hz)
Operating SystemWindows® 11 64-bit / Windows® 10 64-bit
Special FeaturesExtreme Engine Digi+ M.2 Q-Latch, Q-DIMM, Q-LED, Q-Slot Pre-mounted I/O Shield SafeSlot & SafeDIMM Aura Sync RGB
Internal Connectors1 x CPU Fan Header 1 x Chassis Fan Header 1 x AIO Pump Header 1 x 24-pin Power 1 x 8-pin CPU Power 2 x M.2 4 x SATA Aura RGB & Addressable Gen 2 Headers Clear CMOS, S/PDIF, Speaker, Thermal Sensor Headers
Wireless & BluetoothWi-Fi 6E (2x2, 802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz Bluetooth® 5.3
