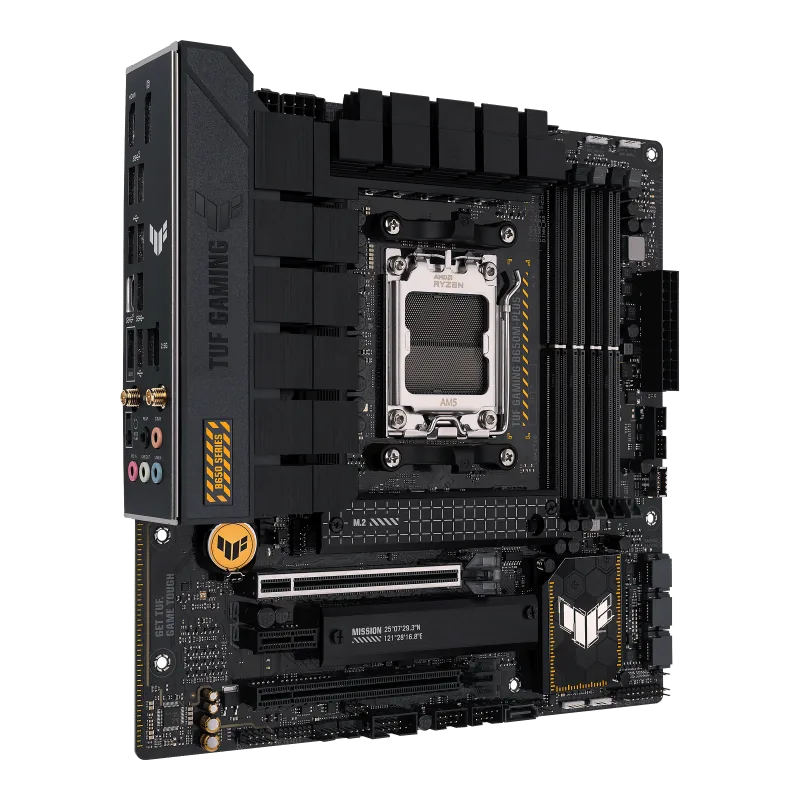

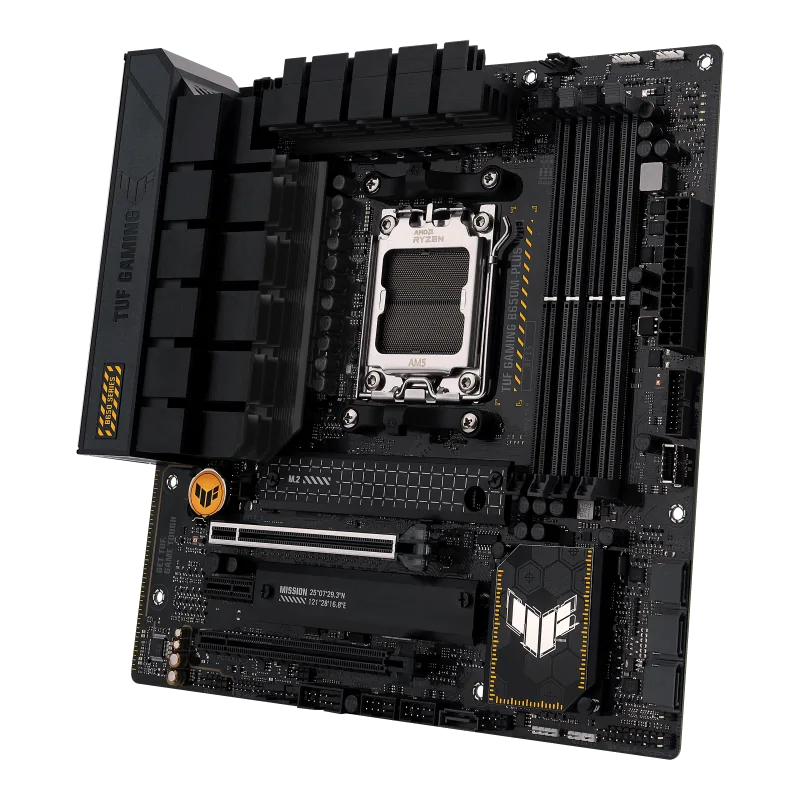

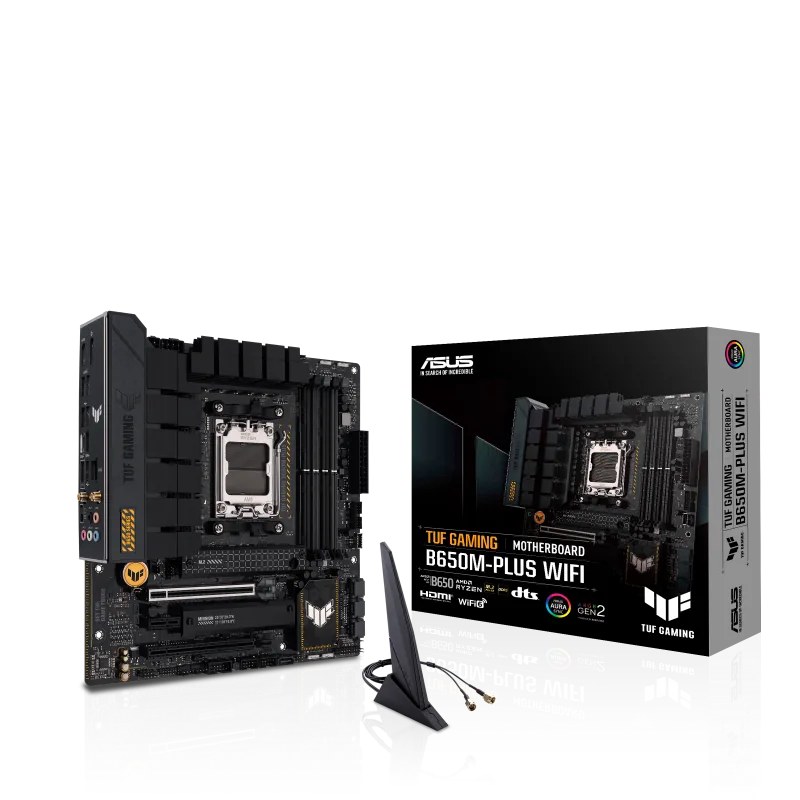

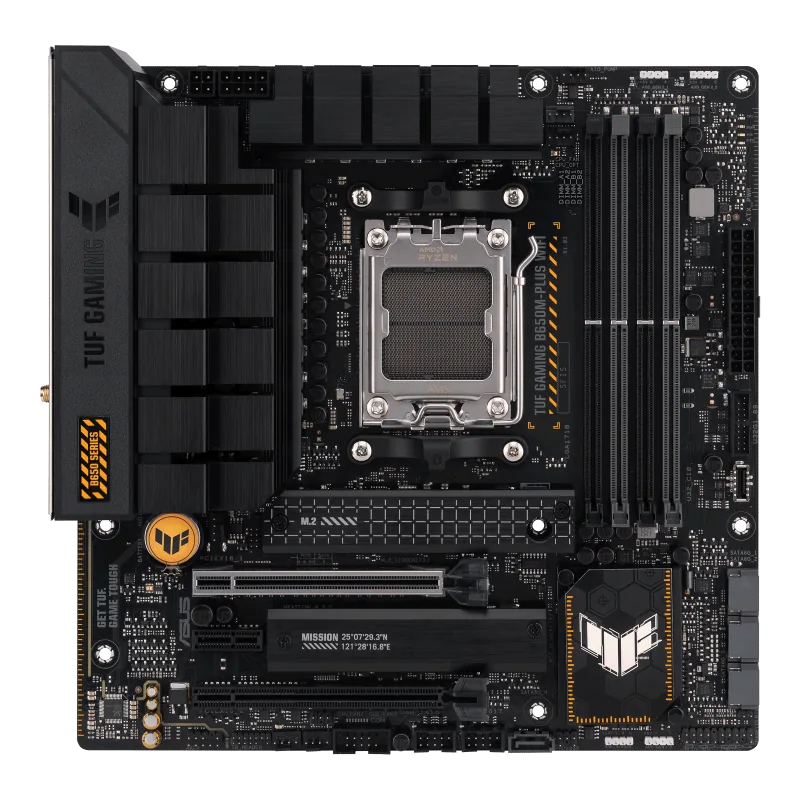

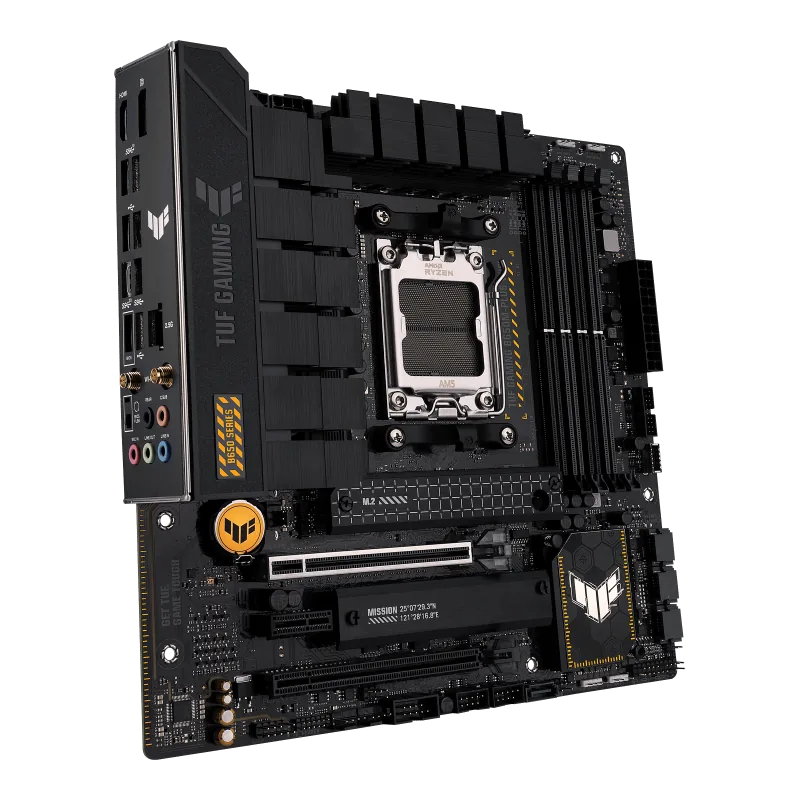

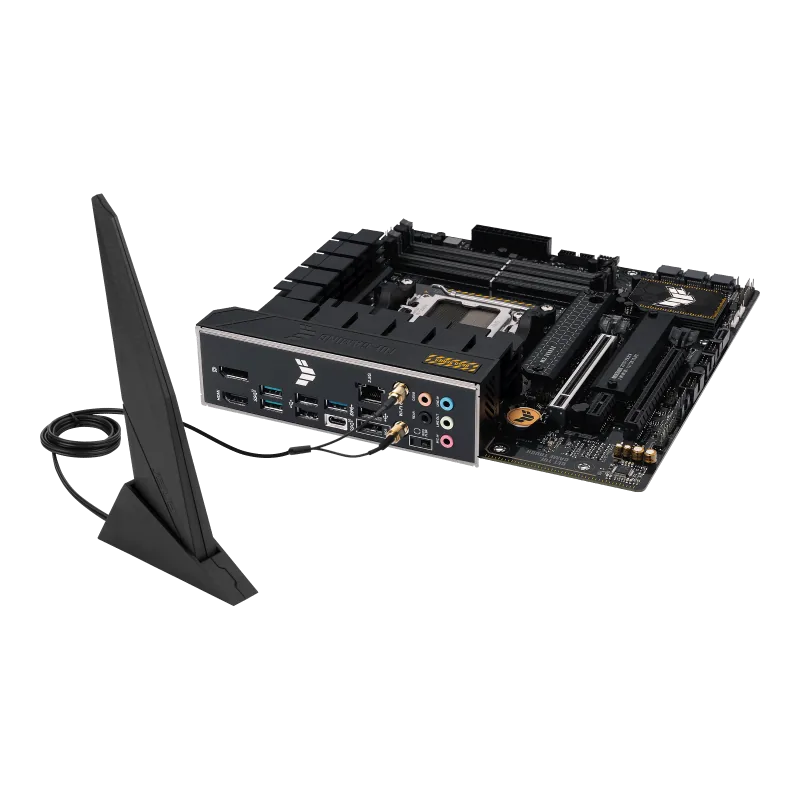

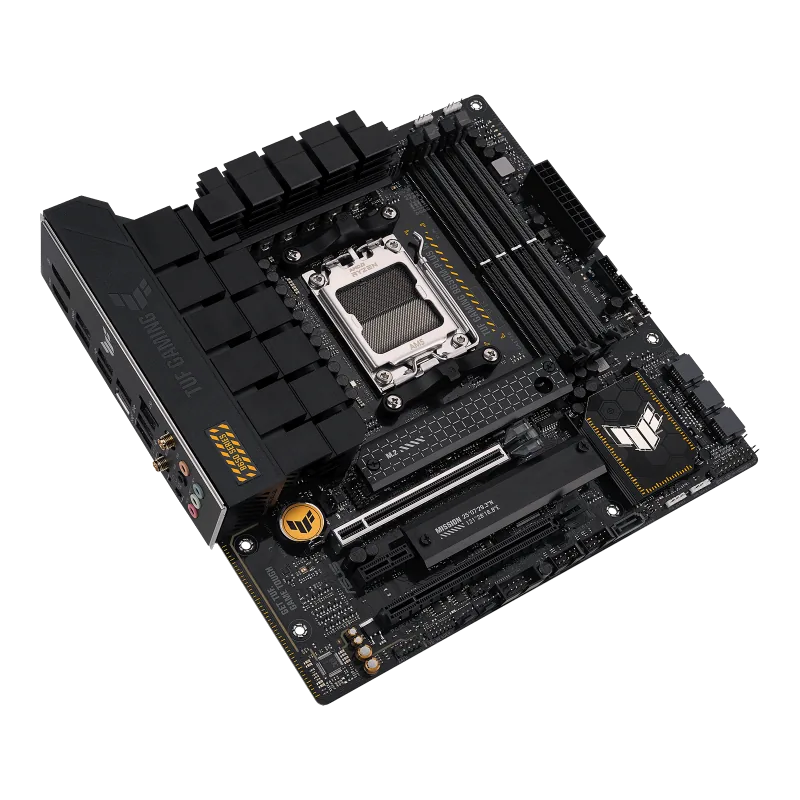

ASUS TUF Gaming B650M-Plus Wifi DDR5 Micro ATX Motherboard, AMD Socket AM5, B650 Chipset, 2.5Gb Ethernet, Bluetooth, WiFi 6E 5GHz, Max 128GB 4xDIMM Memory, PCIe 4.0x16, 2xM.2 Slot | 90MB1BF0-M0EAY0

FromOMR 90.104
ASUS TUF Gaming B650M-Plus Wifi DDR5 Micro ATX Motherboard, AMD Socket AM5, B650 Chipset, 2.5Gb Ethernet, Bluetooth, WiFi 6E 5GHz, Max 128GB 4xDIMM Memory, PCIe 4.0x16, 2xM.2 Slot | 90MB1BF0-M0EAY0—
OMR 90.104

  • Fast delivery

    Ships in 2–4 business days across Oman.

  • Easy returns

    30-day money-back guarantee, no fuss.

  • Secure checkout

    Encrypted payments you can trust.

Description

The ASUS TUF Gaming B650M-PLUS WiFi is a durable Micro-ATX gaming motherboard built for AMD Ryzen 7000, Ryzen 8000G, and Ryzen 9000 Series processors using the latest AM5 socket. Designed with military-grade components, robust power delivery, comprehensive cooling, and next-generation connectivity, it delivers outstanding stability and performance for gaming, content creation, and professional workloads.

Powered by the AMD B650 chipset, the motherboard features a 12+2 DrMOS power stage design with high-quality alloy chokes and durable capacitors to provide stable power for modern Ryzen processors, including high-performance Ryzen 9 CPUs. ASUS TUF components and advanced PCB design ensure long-term reliability under demanding workloads.

Supporting up to 128GB of DDR5 memory across four DIMM slots, the motherboard enables memory overclocking up to 7600MT/s (OC) and supports both AMD EXPO™ and selected XMP memory profiles, allowing users to maximize memory performance with compatible DDR5 kits.

For graphics and expansion, the motherboard features a reinforced PCIe 4.0 x16 SafeSlot, providing secure support for the latest AMD Radeon and NVIDIA GeForce graphics cards while delivering full PCIe Gen4 bandwidth.

Storage options include two PCIe 4.0 M.2 slots with integrated heatsinks for high-speed NVMe SSDs, along with four SATA 6Gb/s ports for additional SSDs and hard drives, offering flexible storage expansion for gaming libraries and professional projects.

Networking is powered by Intel 2.5 Gigabit Ethernet, integrated Wi-Fi 6E, and Bluetooth 5.2, providing fast wired and wireless connectivity for gaming, streaming, online collaboration, and cloud computing.

ASUS comprehensive cooling includes enlarged VRM heatsinks, M.2 heatsinks, hybrid fan headers, Fan Xpert 2+, and AI Cooling support, helping maintain optimal temperatures during intensive gaming sessions and heavy workloads.

Additional features include USB 3.2 Gen 2 Type-C, USB 3.2 Gen 2, HDMI, DisplayPort, Aura Sync RGB lighting, Q-LED diagnostics, SafeSlot Core+, and TUF LANGuard, delivering a complete platform for modern AMD gaming PCs.

The ASUS TUF Gaming B650M-PLUS WiFi is an ideal motherboard for gamers, enthusiasts, and professionals seeking reliable performance, high-speed connectivity, and long-term durability.

66

Specifications

SKUMB-ASUS TUF B650M-PLUS WI
CPUAMD Socket AM5 for AMD Ryzen 7000 & 8000 Series Desktop Processors*
USBRear USB (Total 8 ports) 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 2 x USB 3.2 Gen 2 ports (2 x Type-A) 1 x USB 3.2 Gen 1 port (1 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 1 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports
BIOS256 Mb Flash ROM, UEFI AMI BIOS
AudioRealtek 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers
ModelTUF GAMING B650M-PLUS WIFI
Memory4 x DIMM, Max. 192GB, DDR5 7600+(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC & Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports AMD EXTended Profiles for Overclocking (EXPO OptiMem II * Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to for memory support list. ** Non-ECC, Un-buffered DDR5 Memory sup
ChipsetAMD B650
StorageTotal supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* AMD Ryzen 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) AMD Ryzen 8000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode)** AMD B650 Chipset 4 x SATA 6Gb/s ports *AMD RAIDXpert2 Technology supports both NVMe RA
Ethernet1 x Realtek 2.5Gb Ethernet TUF LANGuard
Graphics1 x DisplayPort* 1 x HDMI port** * Supports max. 8K@60Hz as specified in DisplayPort 1.4. ** Supports 4K@60Hz as specified in HDMI 2.1. *** VGA resolution support depends on processors' or graphic cards' resolution.
Form Factormicro-ATX Form Factor 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
Miscellaneous3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thunderbolt (USB4) header
Expansion SlotsAMD Ryzen 7000 Series Desktop Processors 1 x PCIe 4.0 x16 slot AMD Ryzen 8000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)** AMD B650 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) 1 x PCIe 4.0 x1 slot * Please check PCIe bifurcation table in support ** Specifications vary by CPU types. - To ensure compatibility of the device installed, please refer to  for the list of supported peripherals.
Source Categorycore-components/motherboards
Operating SystemWindows11, Windows10 64-bit
Special FeaturesASUS TUF PROTECTION - DIGI+ VRM (- Digital power design with DrMOS) - Enhanced DRAM Overcurrent Protection - ESD Guards - TUF LANGuard - Overvoltage Protection - SafeSlot Core+ - Stainless-Steel Back I/O ASUS Q-Design - M.2 Q-Latch - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack button - BIOS FlashBack LED - ProCool - Pre-mounted I/O shield - SafeDIMM Aura Sync -
Software FeaturesASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 2+ - Power Saving - Two-Way AI Noise Cancellation AI Suite 3 - TurboV EVO - DIGI+ VRM - PC Cleaner TUF GAMING CPU-Z DTS Audio Processing MyAsus Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode

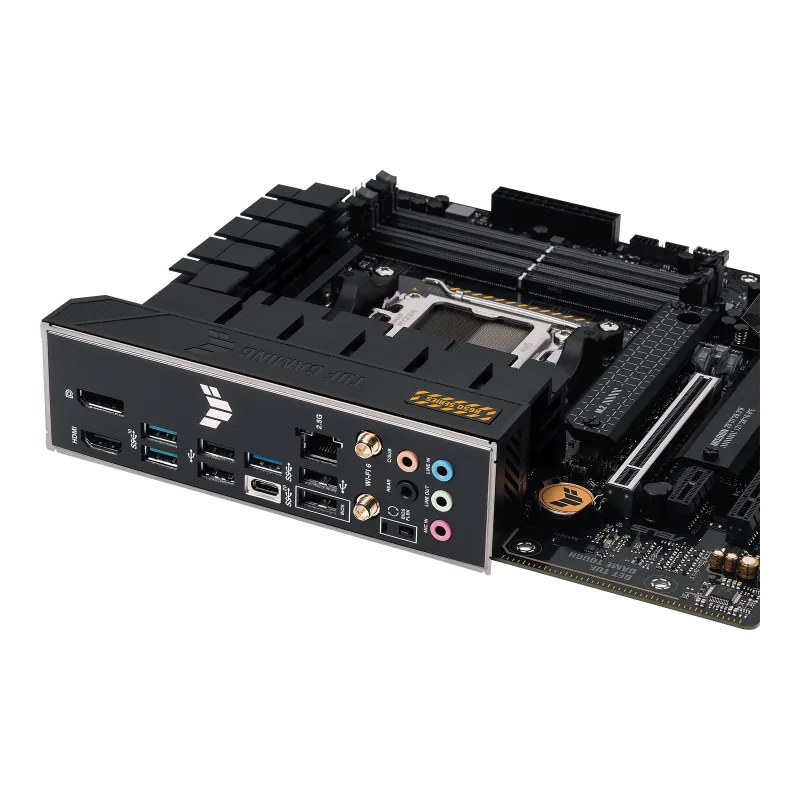

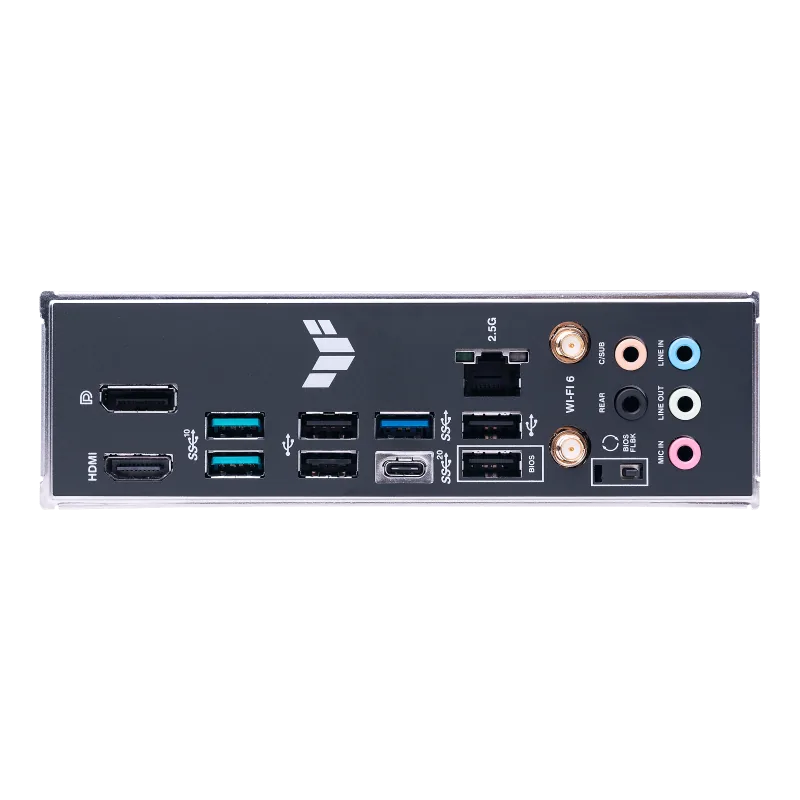

Back Panel I/O Ports1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 2 x USB 3.2 Gen 2 ports (2 x Type-A) 1 x USB 3.2 Gen 1 port (1 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort 1 x HDMIport 1 x Wi-Fi Module 1 x Realtek 2.5Gb Ethernet port 5 x Audio jacks 1 x BIOS FlashBack button
Wireless & BluetoothWi-Fi 6 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band Bluetooth v5.2
Internal I/O ConnectorsFan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB Gen 1 connector (supports USB Type-C ) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports
