GIGABYTE X870E AERO X3D WOOD Motherboard, AMD AM5, Ryzen 9000 Ready, 16+2+2 VRM, DDR5 9000(OC), Dual USB4, & Wi-Fi 7, Wood Edition | 9MX87EOXD-00-G10

FromOMR 172.568
GIGABYTE X870E AERO X3D WOOD Motherboard, AMD AM5, Ryzen 9000 Ready, 16+2+2 VRM, DDR5 9000(OC), Dual USB4, & Wi-Fi 7, Wood Edition | 9MX87EOXD-00-G10—
OMR 172.568

  • Fast delivery

    Ships in 2–4 business days across Oman.

  • Easy returns

    30-day money-back guarantee, no fuss.

  • Secure checkout

    Encrypted payments you can trust.

Description

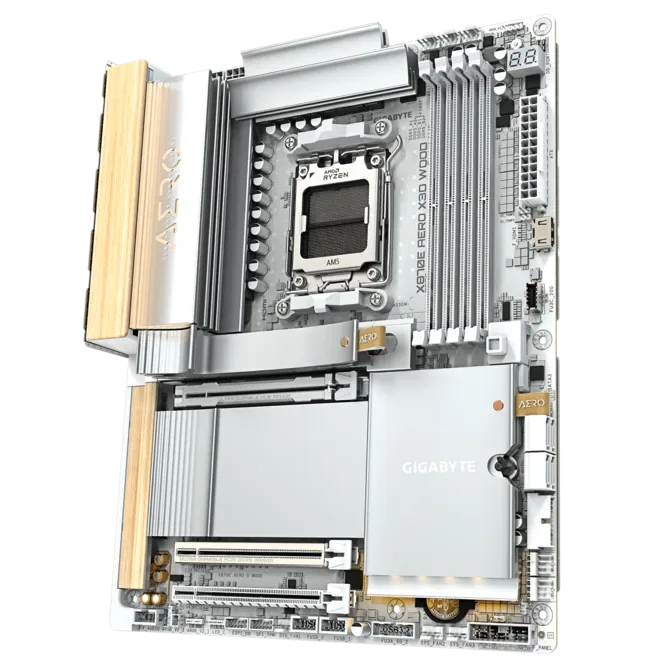

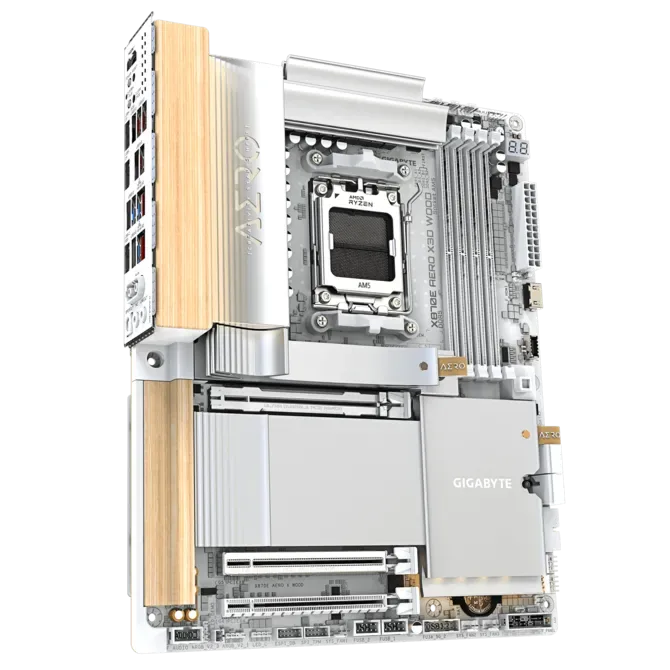

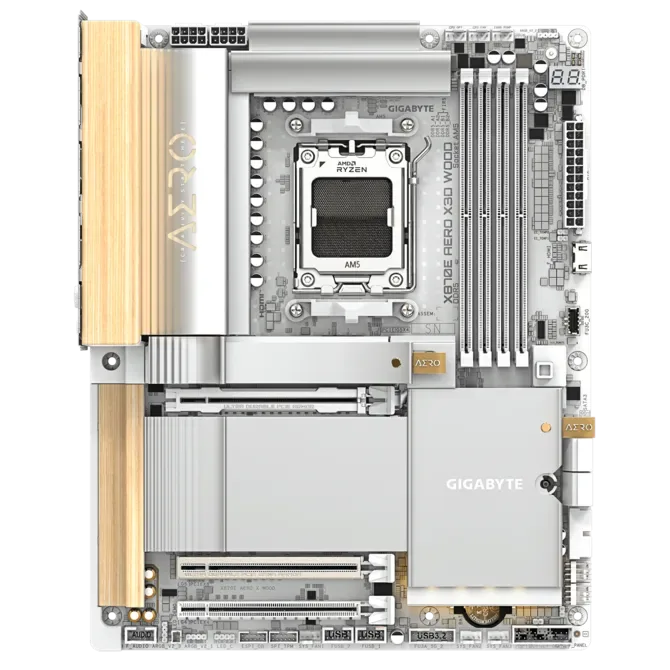

X870E AERO X3D WOOD
X870E AERO X3D WOOD

Overclocking Without Boundaries: DDR5 9000(OC)
Speed is the lifeblood of the creator. The X870E AERO X3D WOOD shatters expectations by supporting ultra-fast DDR5 memory up to 9000Hz. Combined with the massive L3 cache of Ryzen X3D processors, this board eliminates data bottlenecks in real-time 3D rendering, complex AI simulations, and extreme 4K video editing. Supported by a robust 16+2+2 Phases Digital VRM, your system will maintain peak clock speeds under the most grueling multi-day renders.



The Connectivity Hub of the Future: USB4 & Wi-Fi 7
Stay ahead of every deadline with pro-grade connectivity. Featuring dual USB4 Type-C ports, you get 40Gbps of bandwidth—enough to daisy-chain high-end storage arrays and 8K monitors through a single cable. For the wireless age, Wi-Fi 7 delivers staggering speeds and ultra-low latency, while the 5GbE LAN ensures your wired network stays at the cutting edge. Whether you are moving terabytes of raw footage or collaborating via the cloud, the AERO X3D WOOD handles it with ease.



Building Perfected: EZ-Latch & PCIe 5.0
Experience a "Zero-Friction" build process. GIGABYTE’s EZ-Latch technology allows for tool-less installation of M.2 SSDs and a quick-release mechanism for massive modern GPUs. With dual PCIe 5.0 x16 slots and support for the latest NVMe Gen5 drives, this board is ready for the hardware of tomorrow. The AERO X3D WOOD doesn't just support your vision; it accelerates the process of bringing it to life.

6a:T

Specifications

SKUMB-GIGABYTE X870E AERO WD
CPUAMD Socket AM5; supports Ryzen™ 9000, 8000, and 7000 Series Processors
LAN2 x Realtek® 5GbE LAN chips (5/2.5/1 Gbps/100 Mbps)
BIOS256 Mbit flash; AMI UEFI BIOS; PnP 1.0a, DMI 2.7, ACPI 5.0
AudioRealtek® ALC1220 CODEC; 7.1-Channel High Definition Audio; S/PDIF Out
Memory4 x DDR5 DIMM (up to 256 GB); supports up to DDR5 9000(O.C); Dual Channel; AMD EXPO™ & Intel® XMP support
ChipsetAMD X870E
WirelessMediaTek Wi-Fi 7 (802.11be) 320MHz; Bluetooth 5.4

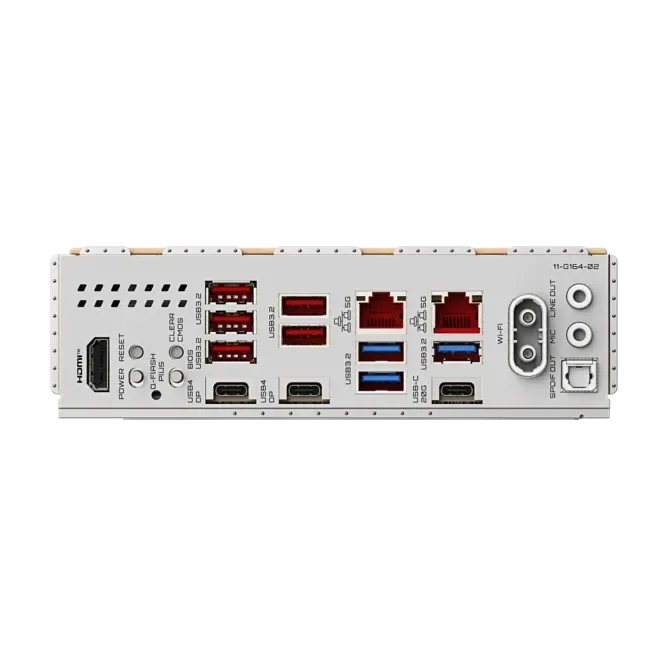

USB (Rear)2 x USB4® Type-C®; 1 x USB 3.2 Gen 2x2 Type-C®; 5 x USB 3.2 Gen 2 Type-A; 3 x USB 3.2 Gen 1
Form FactorATX
RAID SupportNVMe: RAID 0/1/5/10 (RAID 5 Ryzen 9000 only); SATA: RAID 0/1/10
USB (Internal)1 x USB 3.2 Gen 2x2 Type-C®; 4 x USB 3.2 Gen 1; 4 x USB 2.0/1.1
Expansion Slots1 x PCIe 5.0 x16 (CPU); 1 x PCIe 5.0 x8 (CPU); 1 x PCIe 4.0 x4 (Chipset)
Source Categorycore-components/motherboards/amd-motherboards
Internal Headers1 x CPU Fan, 1 x AIO Pump, 6 x System Fan/Pump, 3 x Addressable RGB Gen2, 1 x RGB, 2 x Temp Sensor
Onboard Graphics2 x USB4® Type-C® (4K@240Hz/DP 1.4); 1 x HDMI 2.1 (4K@60Hz); 1 x Front HDMI (1080p@30Hz)
Operating SystemSupport for Windows 11 64-bit
Storage Interface2 x M.2 PCIe 5.0 x4 (CPU); 2 x M.2 PCIe 4.0 x4 (Chipset); 4 x SATA 6Gb/s
Back Panel ButtonsQ-Flash Plus, Clear CMOS, Power, Reset
