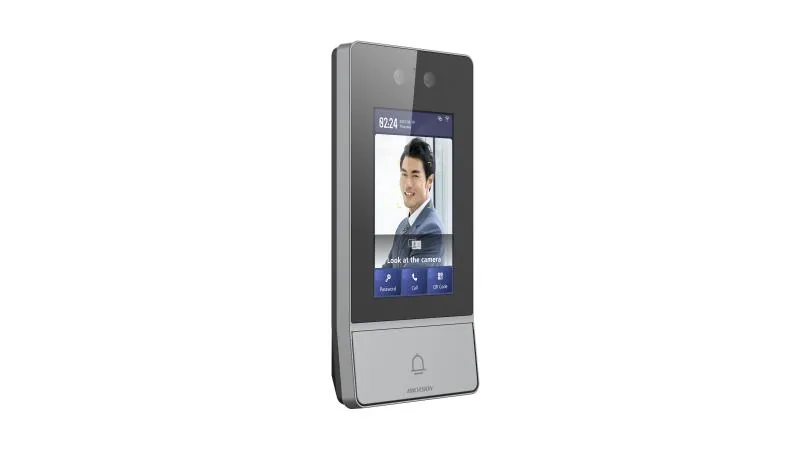

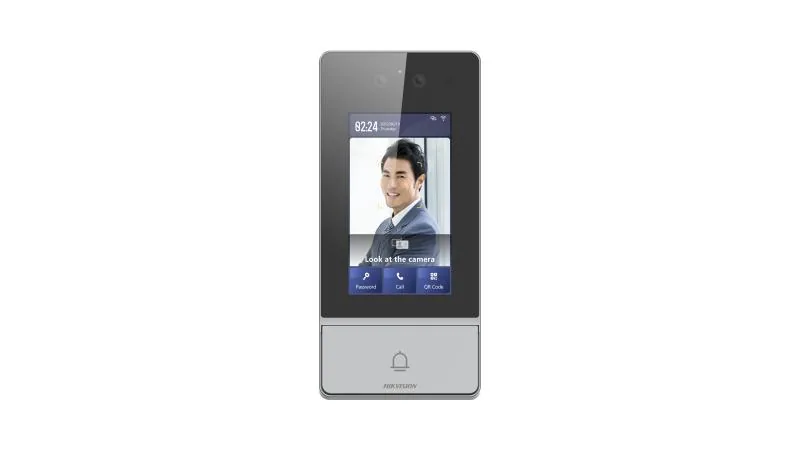

Hikvision DS-KV9503-WBE1 Metal Vandal-resistant Facial Recognition IP Villa Door Station

FromOMR 89.893
Hikvision DS-KV9503-WBE1 Metal Vandal-resistant Facial Recognition IP Villa Door Station—
OMR 89.893

  • Fast delivery

    Ships in 2–4 business days across Oman.

  • Easy returns

    30-day money-back guarantee, no fuss.

  • Secure checkout

    Encrypted payments you can trust.

Description

System Specifications

System Parameters
Operating SystemLinux
ROM4 GB
RAM1 GB
ProcessorEmbedded high-performance processor
Display Parameters
Screen Size4.3-inch
Operation MethodCapacitive touch screen
TypeIPS
Resolution800  480
Luminance425 cd/m
Video Parameters
Lens2
Resolution2  2 MP
FOVHorizontal: 88, Vertical: 44
Wide Dynamic Range (WDR)Support 120 dB
Supplement LightIR light, up to 3 m
Video Compression StandardMain stream and sub stream: H.264
Third stream: H.265
Audio Parameters
Audio Input1 built-in omnidirectional microphone
Audio Compression StandardG.711u, G.711a, Opus, AAC-LD, AAC-LC, G.726, G.722.1
Audio Output1 built-in loudspeaker
Audio Compression BitrateG.711u, G.711a, Opus: 64kbps
G.722.1, G.726: 32kbps
AAC-LD, AAC-LC: 16kbps
Audio QualityNoise suppression and echo cancellation
Volume AdjustmentAdjustable
Capacity
User Capacity20000
Face Capacity10000
Card Capacity100000
Linked Indoor Station Capacity500
Sub Door Station Capacity16
Network Parameters
Network ProtocolTCP/IP, RTSP
Wi-FiIEEE802.11b, IEEE802.11g, IEEE802.11n
BluetoothSupport: 2.0
Authentication
Card Reading Frequency13.56 MHz
Face Recognition Distance0.3 to 2 m
Face Recognition Accuracy Rate 99%
Face Recognition Duration< 0.2 s per person
Device Interfaces
Alarm Input4 (2 exit buttons and 2 door contacts by default)
Network Interface1 RJ-45, 10/100 Mbps self-adaptive
TAMPER1
Exit Button2
RS-4851
TF CardReserved
Lock Control2 relays, Max. 30 VDC 2 A, lock 2 needs secure module
Door Contact Input2
General
Button1 physical button
InstallationSurface mounting
WeightNet weight: 0.405 kg
Gross weight: 0.752 kg
Protective LevelIP65, IK08
Working Temperature-40 C to 60 C (-40 F to 140 F)
Working Humidity10% to 90% (non-condensing)
Dimensions (W  H  D)182 mm  85 mm  26 mm (7.16"  3.34"  1.01")
Power Supply12 VDC, 1.5 A, IEEE802.3af, Standard PoE
Application EnvironmentOutdoor
Power Consumption 6 W
LanguagesEnglish, French, Spanish, Russian, German, Italian, Polish, Turkish, and more

Specifications

SKUDS-KV9503-WBE1
FOVHorizontal: 88, Vertical: 44
RAM1 GB
ROM4 GB
Lens2
TypeIPS
Luminance425 cd/m
ProcessorEmbedded high-performance processor
Resolution2  2 MP
Audio Input1 built-in omnidirectional microphone
Screen Size4.3-inch
Audio Output1 built-in loudspeaker
Audio QualityNoise suppression and echo cancellation
Source Categorysecurity-surveillance/video-intercom
Operating SystemLinux
Operation MethodCapacitive touch screen
Supplement LightIR light, up to 3 m
Volume AdjustmentAdjustable
Wide Dynamic Range (WDR)Support 120 dB
Audio Compression BitrateG.711u, G.711a, Opus: 64kbps G.722.1, G.726: 32kbps AAC-LD, AAC-LC: 16kbps
Audio Compression StandardG.711u, G.711a, Opus, AAC-LD, AAC-LC, G.726, G.722.1
Video Compression StandardMain stream and sub stream: H.264 Third stream: H.265
