Product image

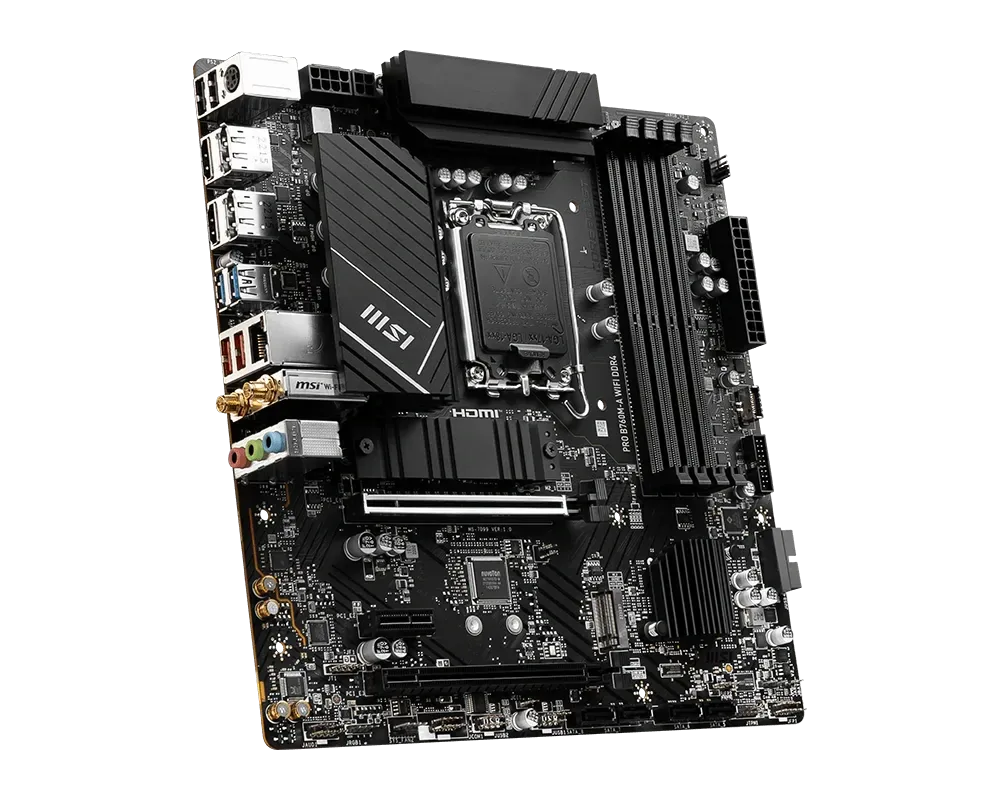

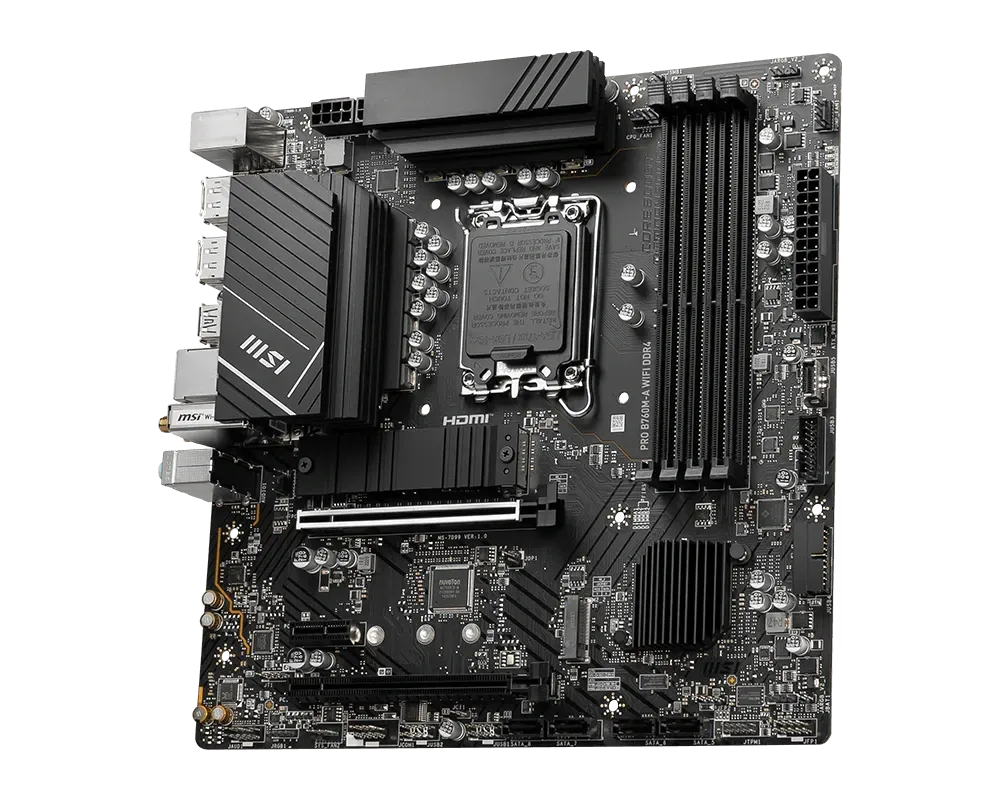

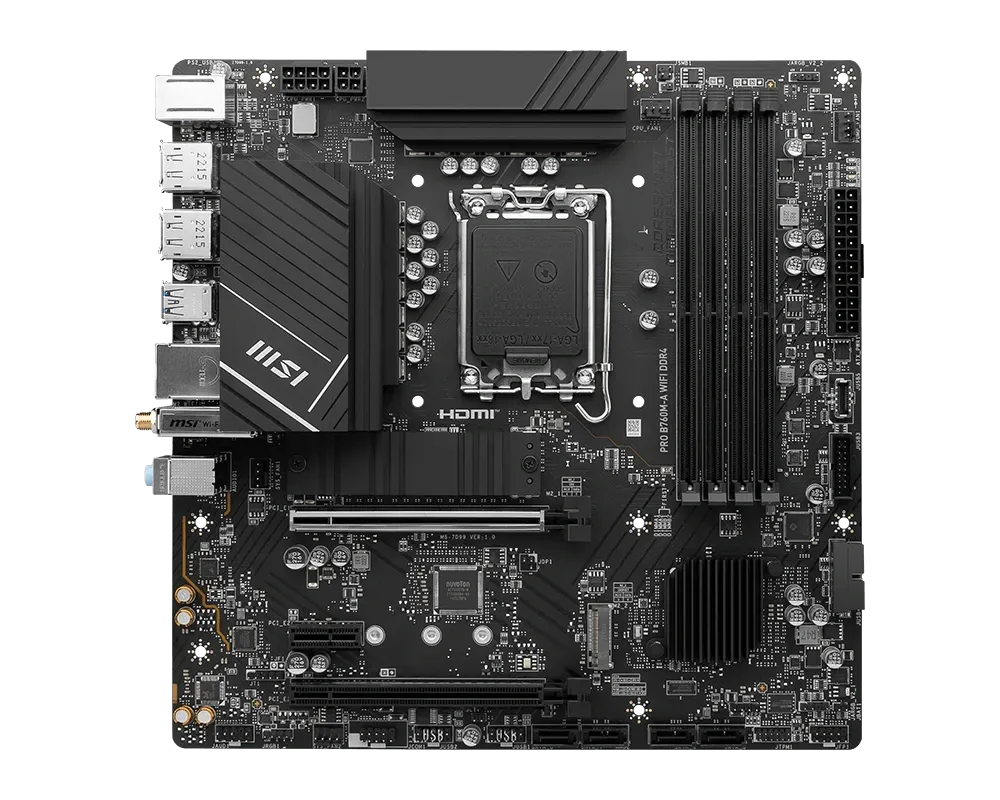

MSI PRO B760M-A WIFI DDR4 Motherboard, Intel LGA 1700, 12th/13th/14th Gen Support, Lightning Gen 4, Wi-Fi 6E | 911-7D99-003

FromOMR 60.696
MSI PRO B760M-A WIFI DDR4 Motherboard, Intel LGA 1700, 12th/13th/14th Gen Support, Lightning Gen 4, Wi-Fi 6E | 911-7D99-003—
OMR 60.696

  • Fast delivery

    Ships in 2–4 business days across Oman.

  • Easy returns

    30-day money-back guarantee, no fuss.

  • Secure checkout

    Encrypted payments you can trust.

Description

PRO B760M-A WIFI DDR4
Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket
Supports DDR4 Memory, Dual Channel DDR4 5333+MHz (OC)
Enhanced Power Design: 12+1 Duet Rail Power System with P-PAK, 8-pin + 4-pin CPU power connectors, Core Boost, Memory Boost
Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
High Quality PCB: 6-layer PCB made by 2oz thickened copper
Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen 4 x4 M.2
Intel Turbo USB 3.2 Gen 2: Powered by Intel USB 3.2 Gen2 controller, Turbo USB ensures an uninterrupted connection with more stability and fastest USB speeds
2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience

6d:["$

Specifications

SKUMB-MSI PRO B760M-A WIFI
AudioRealtek® ALC897 7.1-Channel HD Audio
Memory4x DDR4, Max 128GB (Up to 5333+ MHz OC)
ChipsetIntel B760
Storage2x M.2 PCIe 4.0 x4, 4x SATA 6G

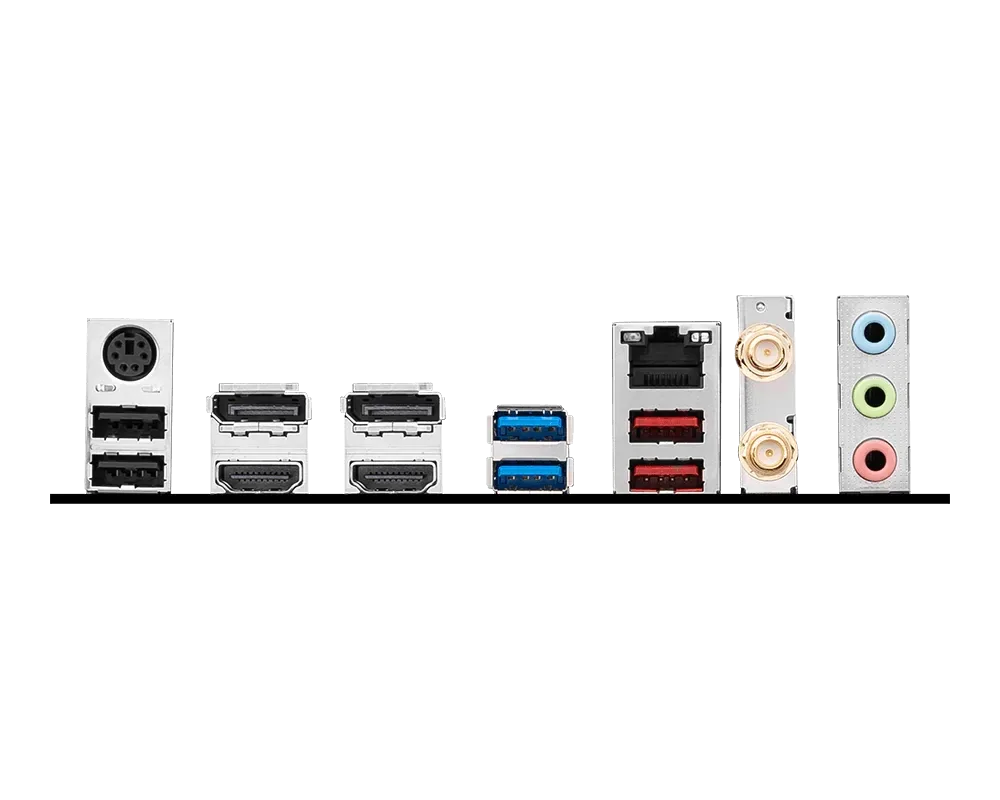

Rear USB2x 10Gbps (Type-A), 2x 5Gbps (Type-A), 2x USB 2.0
WirelessIntel® Wi-Fi 6E + Bluetooth 5.3
Front USB1x 5Gbps (Type-C), 4x 5Gbps (Type-A), 4x USB 2.0
NetworkingRealtek® 2.5Gbps LAN
CPU SupportIntel® Core™ 14th/ 13th/ 12th Gen (LGA 1700)
Form FactormATX (243.84 x 243.84 mm)
Video Output2x HDMI 2.1 (4K/60Hz), 2x DisplayPort 1.4 (4K/60Hz)
Expansion Slots1x PCIe 4.0 x16 (CPU), 1x PCIe 4.0 x4, 1x PCIe 3.0 x1
