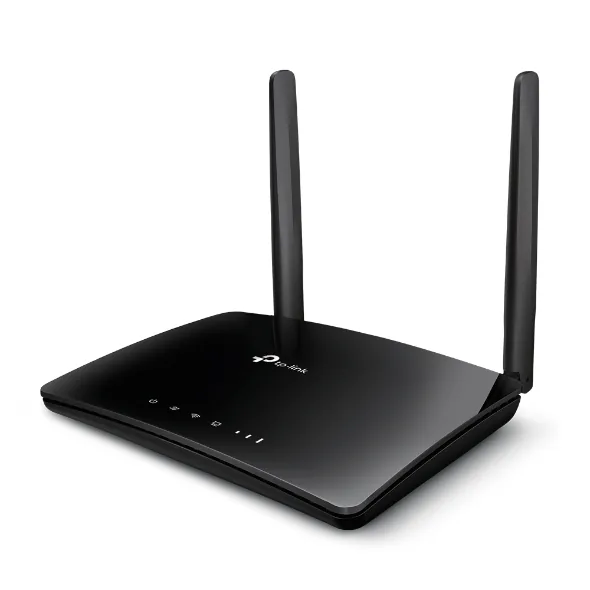

TP-LINK Archer MR202 AC750 Wireless Dual Band 4G LTE Router, Up to 300 Mbps on the 2.4GHz & 433 Mbps on the 5GHz

FromOMR 20.407
TP-LINK Archer MR202 AC750 Wireless Dual Band 4G LTE Router, Up to 300 Mbps on the 2.4GHz & 433 Mbps on the 5GHz—
OMR 20.407
  • Fast delivery

    Ships in 2–4 business days across Oman.

  • Easy returns

    30-day money-back guarantee, no fuss.

  • Secure checkout

    Encrypted payments you can trust.

Description

table { border-collapse: collapse; width: 100%; } tr { border-bottom: 1px solid rgb(222, 226, 230); } td { padding: 8px; margin: 0; } td:first-child { font-weight: bold; color: #333; } h3 { margin-top: 10px; }

TP-Link Archer MR202 AC750 Wireless Dual Band 4G LTE Router Specifications

Hardware Features

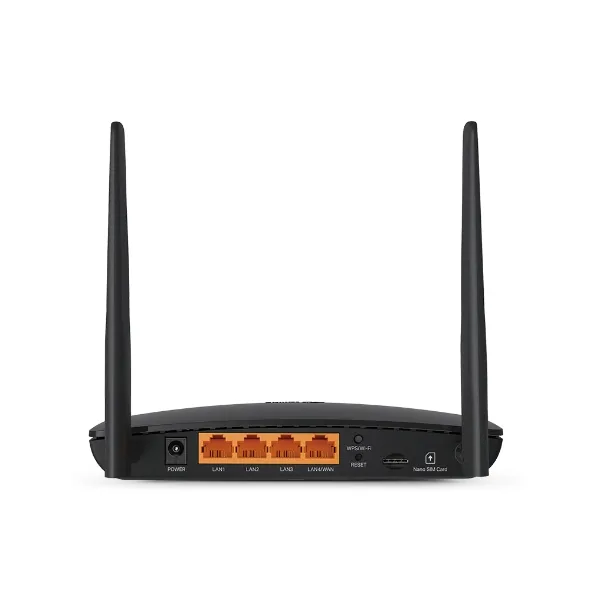

Interface??? 3?? 10/100Mbps LAN Ports
??? 1?? 10/100Mbps LAN/WAN Port
??? 1?? Nano SIM Card Slot
??? 2?? External SMA-F Antenna Interface
ButtonWPS/Wi-Fi Button, Reset Button
External Power Supply12V/1A
Dimensions (W x D x H)6.85 ?? 4.9 ?? 1.32 in (174 ?? 124.5 ?? 33.5 mm)
Antenna2 Detachable External 4G LTE Antennas

Wireless Features

Wireless StandardsIEEE 802.11a/n/ac 5 GHz, IEEE 802.11b/g/n 2.4 GHz
Frequency2.4 GHz and 5 GHz

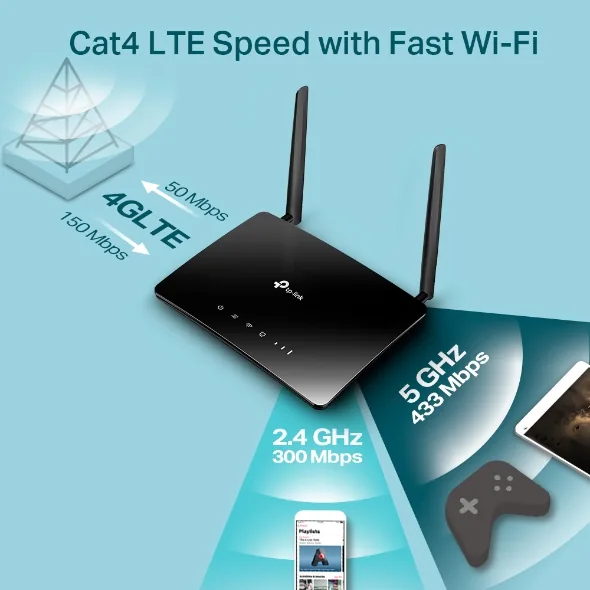

Signal Rate300 Mbps at 2.4 GHz, 433 Mbps at 5 GHz
Reception Sensitivity5 GHz:
??? 11a 54M: -78 dBm
??? 11ac VHT20 MCS0: -92 dBm
??? 11ac VHT20 MCS8: -72 dBm
??? 11ac VHT40 MCS0: -90 dBm
??? 11ac VHT40 MCS9: -67 dBm
??? 11ac VHT80 MCS0: -87 dBm
??? 11ac VHT80 MCS9: -64 dBm

2.4 GHz:
??? 11g 54M: -74 dBm
??? 11n HT20 MCS0: -91 dBm
??? 11n HT20 MCS7: -72 dBm
??? 11n HT40 MCS0: -88 dBm
??? 11n HT40 MCS7: -69 dBm
Wireless FunctionsEnable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless Statistics

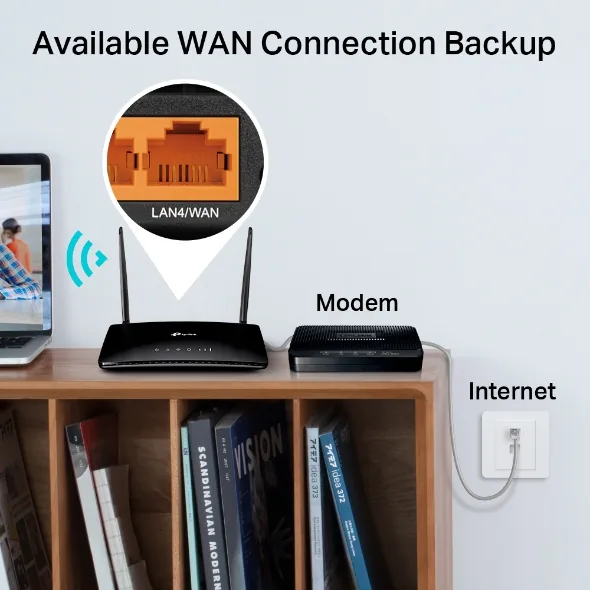

WAN FailoverYes
Wireless Security64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions
Transmission Power< 20 dBm (2.4 GHz), < 23 dBm (5 GHz)
Network Type4G:
FDD-LTE: B1/B3/B5/B7/B8/B20/B28 (2100/1800/850/2600/900/800/700 MHz)
TDD-LTE: B38/B40/B41 (2600/2300/2500 MHz)

3G:
HSPA/UMTS: B1/B5/B8 (2100/850/900 MHz)

Software Features

Quality of ServicePrioritizes network traffic by device or application
Operating Modes3G/4G Router, Wireless Router
WAN TypeDynamic IP, Static IP, PPPoE, PPTP (Dual Access), L2TP (Dual Access)
Management FeaturesAccess Control, Local Management, Remote Management, Reboot Schedule
DHCPServer, DHCP Client List, Address Reservation
Port ForwardingVirtual Server, Port Triggering, UPnP, DMZ
Dynamic DNSDynDns, NO-IP, TP-Link DDNS
Access ControlYes
Firewall SecurityDoS, SPI Firewall, IP and MAC Address Binding
ProtocolsSupports IPv4 and IPv6
Guest Network2.4GHz guest network ?? 1, 5GHz guest network ?? 1
VPN ServerPPTP VPN, OpenVPN

Others

CertificationCE, RoHS
Package Content??? AC750 Wireless Dual Band 4G LTE Router Archer MR202
??? RJ45 Ethernet Cable
??? 1.5m Power Adapter
??? Quick Installation Guide
System RequirementsMicrosoft Windows 98SE/NT/2000/XP/Vista/7/8/8.1/10, Mac OS, NetWare, UNIX or Linux
Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0 or other Java-enabled browser
Nano SIM Card
Environment??? Operating Temperature: 0???~40??? (32???~104???)
??? Storage Temperature: -40???~60??? (-40???~140???)
??? Operating Humidity: 10%~90% non-condensing
??? Storage Humidity: 5%~90% non-condensing

Specifications

SKUWR-TPLINK ARCHER MR202 4G
DHCPServer, DHCP Client List, Address Reservation
ButtonWPS/Wi-Fi Button, Reset Button
Antenna2 Detachable External 4G LTE Antennas
WAN TypeDynamic IP, Static IP, PPPoE, PPTP (Dual Access), L2TP (Dual Access)
Frequency2.4 GHz and 5 GHz
Interface??? 3?? 10/100Mbps LAN Ports ??? 1?? 10/100Mbps LAN/WAN Port ??? 1?? Nano SIM Card Slot ??? 2?? External SMA-F Antenna Interface
Signal Rate300 Mbps at 2.4 GHz, 433 Mbps at 5 GHz
Network Type4G: FDD-LTE: B1/B3/B5/B7/B8/B20/B28 (2100/1800/850/2600/900/800/700 MHz) TDD-LTE: B38/B40/B41 (2600/2300/2500 MHz) 3G: HSPA/UMTS: B1/B5/B8 (2100/850/900 MHz)
WAN FailoverYes
Operating Modes3G/4G Router, Wireless Router
Port ForwardingVirtual Server, Port Triggering, UPnP, DMZ
Source Categorynetworking/home-networking/wireless-routers
Wireless Security64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions
Quality Of ServicePrioritizes network traffic by device or application
Transmission Power< 20 dBm (2.4 GHz), < 23 dBm (5 GHz)
Wireless FunctionsEnable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless Statistics
Wireless StandardsIEEE 802.11a/n/ac 5 GHz, IEEE 802.11b/g/n 2.4 GHz
Management FeaturesAccess Control, Local Management, Remote Management, Reboot Schedule
External Power Supply12V/1A
Reception Sensitivity5 GHz: ??? 11a 54M: -78 dBm ??? 11ac VHT20 MCS0: -92 dBm ??? 11ac VHT20 MCS8: -72 dBm ??? 11ac VHT40 MCS0: -90 dBm ??? 11ac VHT40 MCS9: -67 dBm ??? 11ac VHT80 MCS0: -87 dBm ??? 11ac VHT80 MCS9: -64 dBm 2.4 GHz: ??? 11g 54M: -74 dBm ??? 11n HT20 MCS0: -91 dBm ??? 11n HT20 MCS7: -72 dBm ??? 11n HT40 MCS0: -88 dBm ??? 11n HT40 MCS7: -69 dBm
Dimensions (W X D X H)6.85 ?? 4.9 ?? 1.32 in (174 ?? 124.5 ?? 33.5 mm)
