tp-link Archer MR402 AC1200 Wireless Dual Band 4G LTE Router, 300 Mbps on 2.4 GHz and 867 Mbps on 5 GHz

FromOMR 21.872
tp-link Archer MR402 AC1200 Wireless Dual Band 4G LTE Router, 300 Mbps on 2.4 GHz and 867 Mbps on 5 GHz—
OMR 21.872

  • Fast delivery

    Ships in 2–4 business days across Oman.

  • Easy returns

    30-day money-back guarantee, no fuss.

  • Secure checkout

    Encrypted payments you can trust.

Description

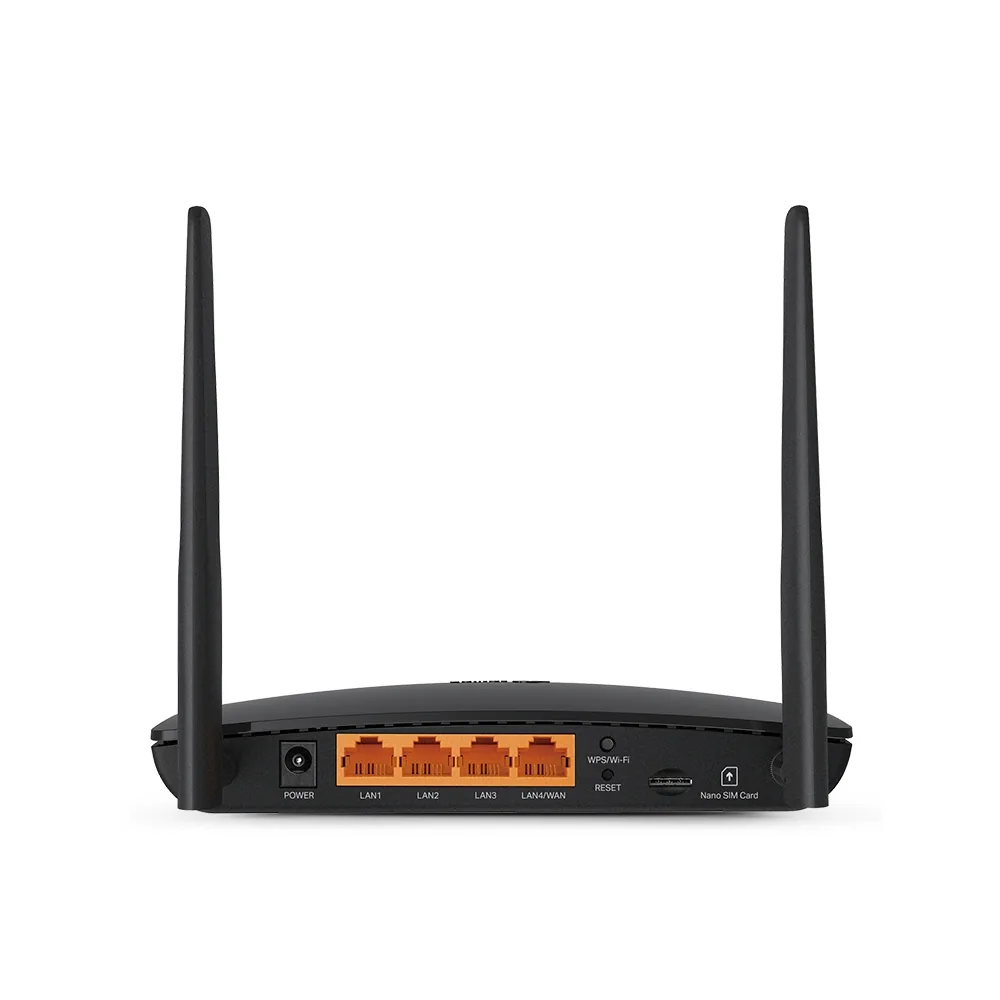

Interface3?? 10/100Mbps LAN Ports
1?? 10/100Mbps LAN/WAN Port

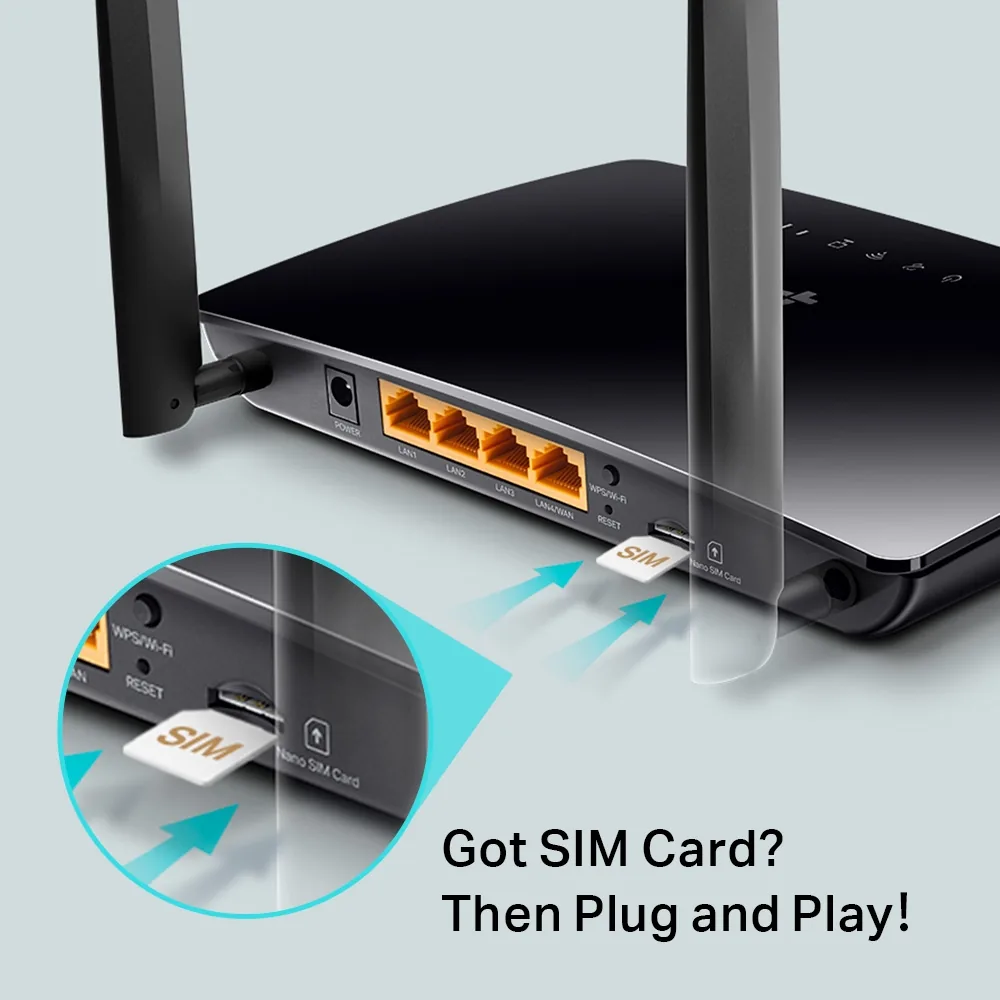

1?? Nano SIM Card Slot
2?? External SMA-F Antenna Interface
ButtonWPS/Wi-Fi Button, Reset Button
External Power Supply12V/1A
Dimensions (W x D x H)6.85 ?? 4.9 ?? 1.32 in (174 ?? 124.5 ?? 33.5 mm)
Antenna2?? Detachable External 4G LTE Antennas

Wireless Features

Wireless StandardsIEEE 802.11a/n/ac 5 GHz, IEEE 802.11b/g/n 2.4 GHz
Frequency2.4 GHz and 5 GHz

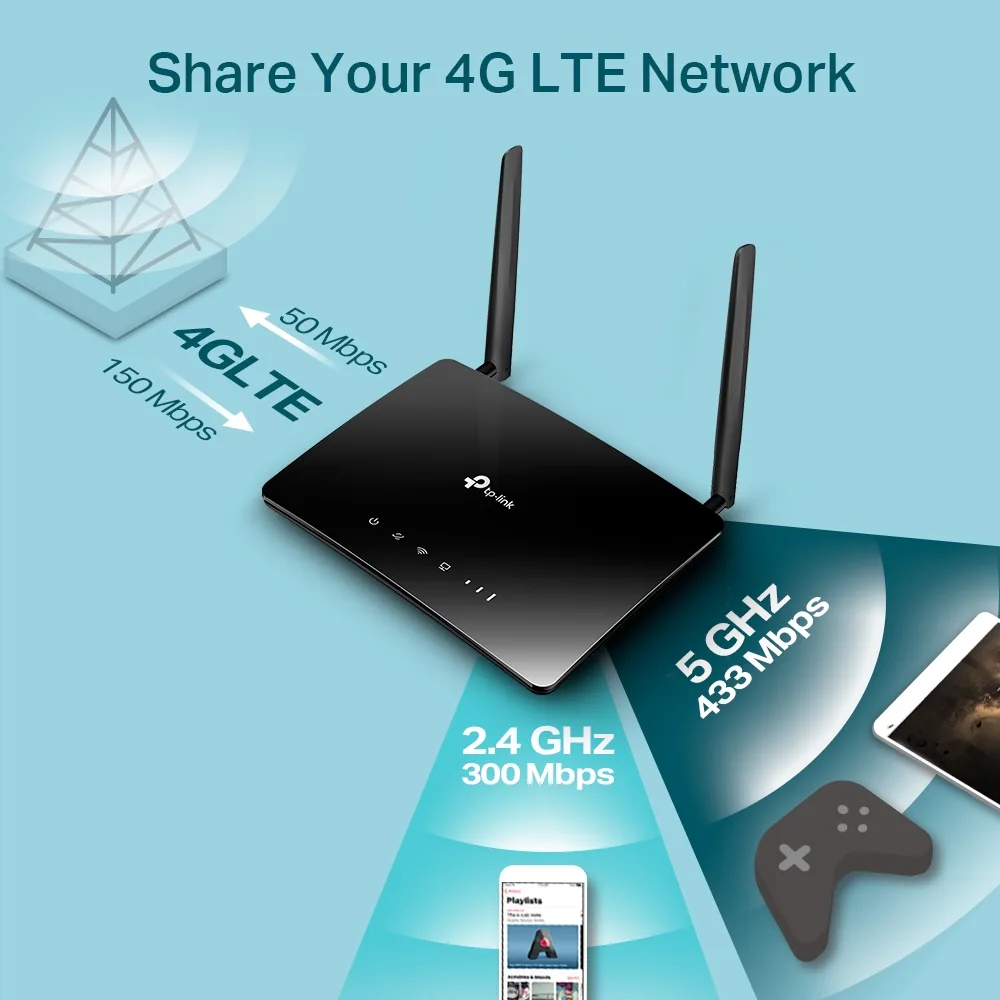

Signal Rate300Mbps at 2.4GHz, 867Mbps at 5GHz
Reception Sensitivity5 GHz:
11a 54M: -77 dBm
11ac VHT20 MCS0: -95.5 dBm
11ac VHT20 MCS8: -73 dBm
11ac VHT40 MCS0: -93 dBm
11ac VHT20 MCS9: -68 dBm
11ac VHT80 MCS0: -90 dBm
11ac VHT20 MCS9: -65 dBm
2.4 GHz:
11g 54M: -74.5 dBm
11n HT20 MCS0: -92 dBm
11n HT20 MCS7: -73 dBm
11n HT40 MCS0: -89 dBm
11n HT40 MCS7: -70 dBm
Wireless FunctionsEnable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless Statistics
WAN FailoverYes
Wireless Security64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions
Transmission Power< 20 dBm (2.4 GHz), < 23 dBm (5 GHz)
Network Type4G: FDD-LTE: B1/B3/B5/B7/B8/B20/B28 (2100/1800/850/2600/900/800/700 MHz)
TDD-LTE: B38/B40/B41 (2600/2300/2500 MHz)
3G: HSPA/UMTS: B1/B5/B8 (2100/850/900 MHz)

Software Features

Quality of ServicePrioritizes network traffic by device or application
Operating Modes3G/4G Router, Wireless Router
WAN TypeDynamic IP / Static IP / PPPoE / PPTP (Dual Access) / L2TP (Dual Access)
Management FeaturesAccess Control, Local Management, Remote Management, Reboot Schedule
DHCPServer, Client, DHCP Client List, Address Reservation
Port ForwardingVirtual Server, Port Triggering, UPnP, DMZ
Dynamic DNSDynDns, NO-IP
VPNPPTP VPN, OpenVPN
Access ControlParental Control, Local Management Control
Firewall SecurityDoS, SPI Firewall, IP Address Filter/Domain Filter, IP and MAC Address Binding
ProtocolsSupports IPv4 and IPv6
Guest Network2.4GHz guest network ??1, 5GHz guest network ??1

Others

CertificationCE, RoHS
Package ContentAC1200 Wireless Dual Band 4G LTE Router (Archer MR402)
RJ45 Ethernet Cable
1.5m Power Adapter
Quick Installation Guide
System RequirementsMicrosoft Windows 98SE/NT/2000/XP/Vista/7/8/8.1/10
Mac OS, NetWare, UNIX, or Linux
Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0 or higher
Java-enabled browsers
Nano SIM Card
EnvironmentOperating Temperature: 0???~40??? (32??? ~104???)
Storage Temperature: -40???~70??? (-40??? ~158???)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

Specifications

SKUWR-TPLINK MR402 4G
DHCPServer, Client, DHCP Client List, Address Reservation
ButtonWPS/Wi-Fi Button, Reset Button
Antenna2?? Detachable External 4G LTE Antennas
WAN TypeDynamic IP / Static IP / PPPoE / PPTP (Dual Access) / L2TP (Dual Access)
Frequency2.4 GHz and 5 GHz
Interface3?? 10/100Mbps LAN Ports 1?? 10/100Mbps LAN/WAN Port 1?? Nano SIM Card Slot 2?? External SMA-F Antenna Interface
Signal Rate300Mbps at 2.4GHz, 867Mbps at 5GHz
Network Type4G: FDD-LTE: B1/B3/B5/B7/B8/B20/B28 (2100/1800/850/2600/900/800/700 MHz) TDD-LTE: B38/B40/B41 (2600/2300/2500 MHz) 3G: HSPA/UMTS: B1/B5/B8 (2100/850/900 MHz)
WAN FailoverYes
Operating Modes3G/4G Router, Wireless Router
Port ForwardingVirtual Server, Port Triggering, UPnP, DMZ
Source Categorynetworking/commercial-networking/wired-routers
Wireless Security64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions
Quality Of ServicePrioritizes network traffic by device or application
Transmission Power< 20 dBm (2.4 GHz), < 23 dBm (5 GHz)
Wireless FunctionsEnable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless Statistics
Wireless StandardsIEEE 802.11a/n/ac 5 GHz, IEEE 802.11b/g/n 2.4 GHz
Management FeaturesAccess Control, Local Management, Remote Management, Reboot Schedule
External Power Supply12V/1A
Reception Sensitivity5 GHz: 11a 54M: -77 dBm 11ac VHT20 MCS0: -95.5 dBm 11ac VHT20 MCS8: -73 dBm 11ac VHT40 MCS0: -93 dBm 11ac VHT20 MCS9: -68 dBm 11ac VHT80 MCS0: -90 dBm 11ac VHT20 MCS9: -65 dBm 2.4 GHz: 11g 54M: -74.5 dBm 11n HT20 MCS0: -92 dBm 11n HT20 MCS7: -73 dBm 11n HT40 MCS0: -89 dBm 11n HT40 MCS7: -70 dBm
Dimensions (W X D X H)6.85 ?? 4.9 ?? 1.32 in (174 ?? 124.5 ?? 33.5 mm)
