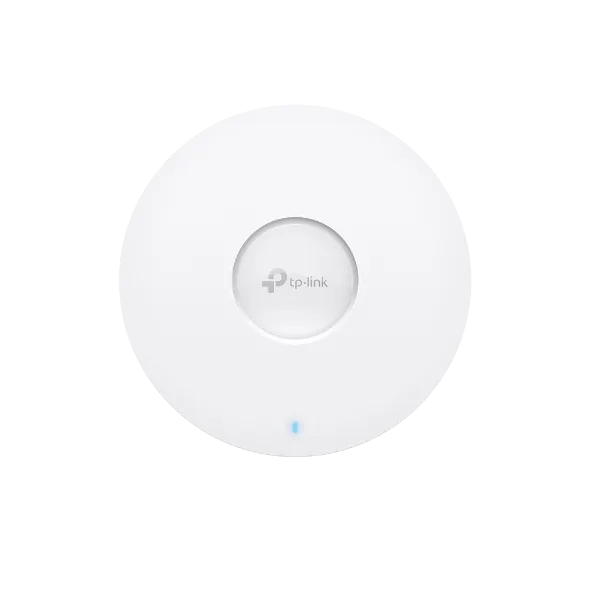

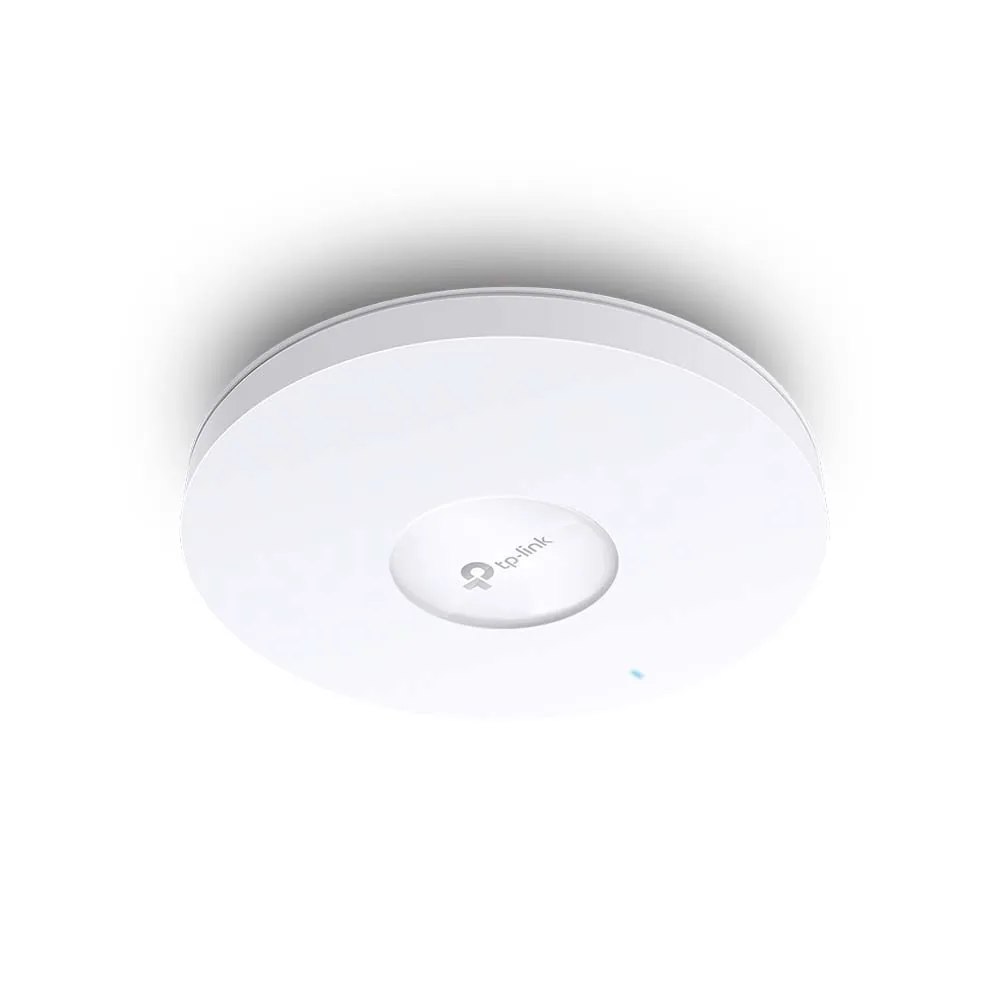

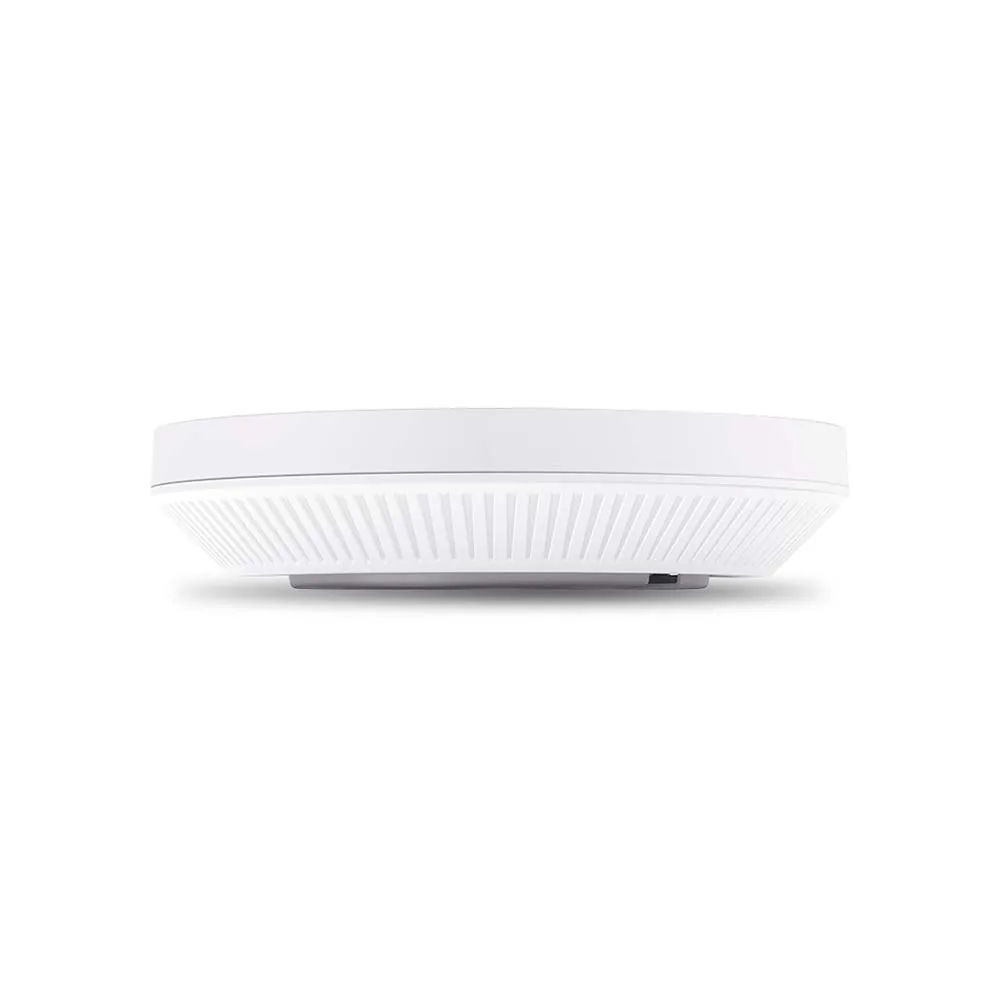

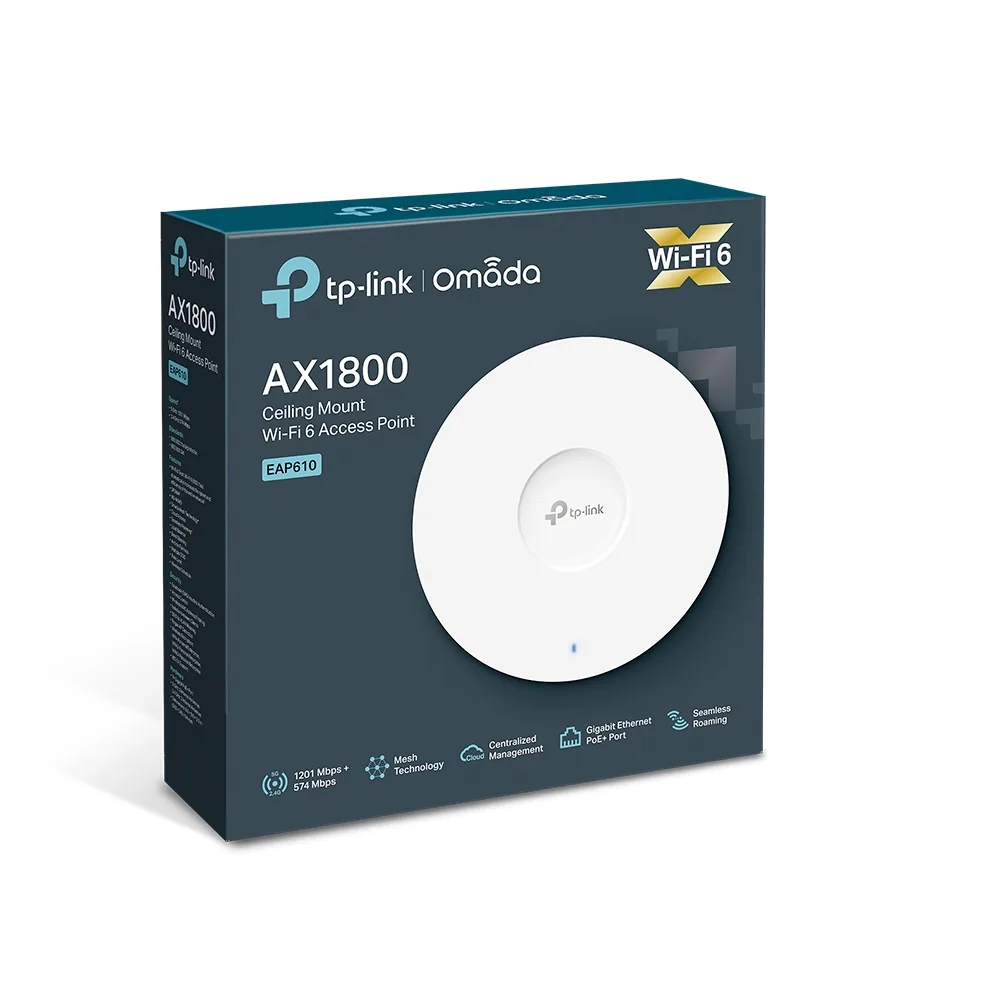

tp-link AX1800 Ceiling Mount WiFi 6 Access Point, Ultra-Fast WiFi 6 Speeds, 74 Mbps on 2.4 GHz and 1201 Mbps on 5 GHz totals 1775 Mbps Wi-Fi speeds, Centralized Cloud Management, PoE+ Powered, Ultra-Slim Design, Seamless Roaming, Omada Mesh | EAP610

FromOMR 31.918
tp-link AX1800 Ceiling Mount WiFi 6 Access Point, Ultra-Fast WiFi 6 Speeds, 74 Mbps on 2.4 GHz and 1201 Mbps on 5 GHz totals 1775 Mbps Wi-Fi speeds, Centralized Cloud Management, PoE+ Powered, Ultra-Slim Design, Seamless Roaming, Omada Mesh | EAP610—
OMR 31.918

  • Fast delivery

    Ships in 2–4 business days across Oman.

  • Easy returns

    30-day money-back guarantee, no fuss.

  • Secure checkout

    Encrypted payments you can trust.

Description

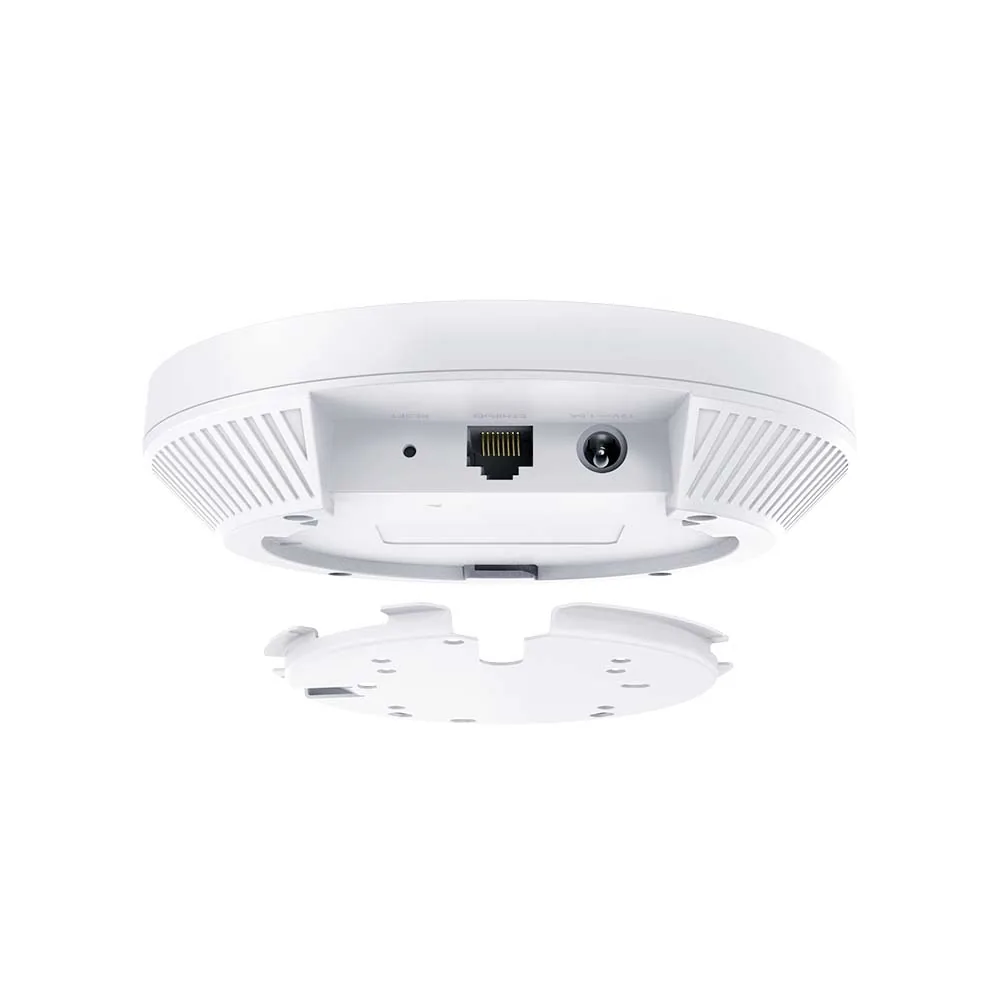

Interface1?? Gigabit Ethernet (RJ-45) Port
ButtonReset
Power Supply
  • V2, V2.2:
    • 802.3at PoE
    • 48 V Passive PoE
    • 12 V / 1.5 A DC (Power Adapter included)
  • V3:
    • 802.3af/at PoE
    • 12V/1A DC (Power Adapter included)
Power Consumption
  • V2 and V2.2:
    • EU: 13.7 W (For PoE); 12.3 W (for DC)
    • US: 14.2 W (For PoE); 12.8 W (for DC)
Dimensions ( W x D x H )V2 and above: 6.3 ?? 6.3 ?? 1.3 in (160 ?? 160 ?? 33.6 mm)
Antenna Type
  • Internal Omni Antenna
  • 2.4 GHz: 2?? 4 dBi
  • 5 GHz: 2?? 5 dBi
Mounting

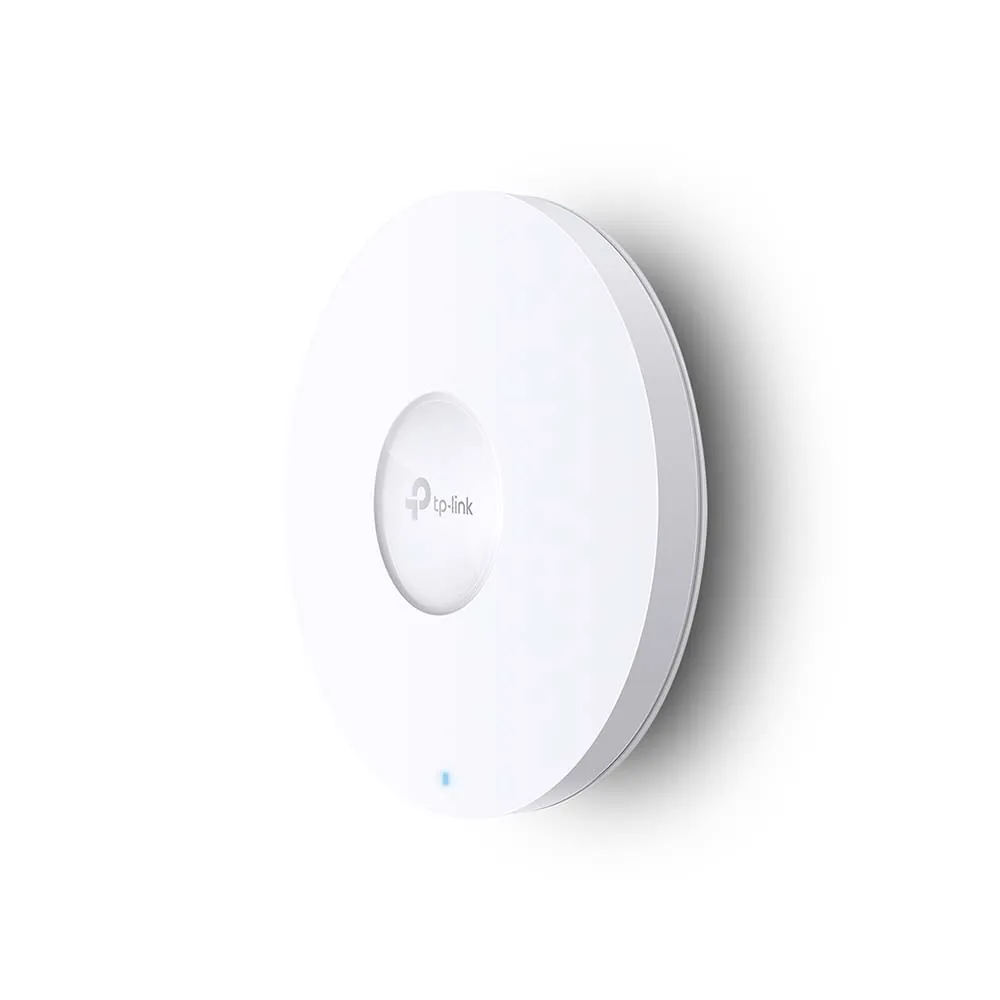

  • Ceiling /Wall Mounting (Kits included)
  • Junction Box Mounting
WIRELESS FEATURES
Wireless Client Capacity250+**
Wireless StandardsIEEE 802.11ax/ac/n/g/b/a
Frequency2.4 GHz and 5 GHz
Signal Rate
  • 5 GHz: Up to 1201 Mbps
  • 2.4 GHz: Up to 574 Mbps
Wireless Functions
  • 1024-QAM
  • 4?? Longer OFDM Symbol
  • OFDMA
  • Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
  • Enable/Disable Wireless Radio
  • Automatic Channel Assignment
  • Transmit Power Control (Adjust Transmit Power on dBm)
  • QoS(WMM)
  • MU-MIMO
  • Seamless Roaming ??
  • Omada Mesh??
  • Band Steering
  • Load Balance
  • Airtime Fairness
  • Beamforming
  • Rate Limit
  • Reboot Schedule
  • Wireless Schedule
  • Wireless Statistics based on SSID/AP/Client
Wireless Security
  • Captive Portal Authentication??
  • Access Control
  • Wireless Mac Address Filtering
  • Wireless Isolation Between Clients
  • SSID to VLAN Mapping
  • Rogue AP Detection
  • 802.1X Support
  • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission Power
  • CE:
    • <20 dBm(2.4 GHz, EIRP)
    • <23 dBm(5 GHz band1/2, EIRP)
    • <25 dBm (5 GHz band3)
  • FCC:
    • <25 dBm (2.4 GHz)
    • <25 dBm (5 GHz)
MANAGEMENT
Omada AppYes
Centralized Management
  • Omada Cloud-Based Controller (Supported by EAP610 V1, V2, V2.2 and above, while is not supported by EAP610 V3)
  • Omada Hardware Controller OC300
  • Omada Hardware Controller OC200
  • Omada Software Controller
Cloud Access
  • Yes, through:
  • OC300
  • OC200
  • Omada Software Controller
  • Omada Cloud-Based Controller (Supported by EAP610 V1, V2, V2.2 and above, while is not supported by EAP610 V3)
Email AlertsYes
LED ON/OFF ControlYes
Management MAC Access ControlYes
SNMPv1, v2c, v3
System LoggingLocal/Remote Syslog
SSHYes
Web-based ManagementHTTP/HTTPS
L3 ManagementYes
Multi-site ManagementYes
Management VLANYes
Zero-Touch ProvisioningYes. Requiring the use of Omada Cloud-Based Controller (Supported by EAP610 V1, V2, V2.2 and above, while is not supported by EAP610 V3)
OTHERS
CertificationCE, FCC, RoHS
Package Contents
  • EAP610
  • Power Adapter
  • Ceiling/ Wall Mounting Kits
  • Installation Guide
System RequirementsMicrosoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux
Environment
Operating Temperature0???40 ??? (32???104 ???)
Storage Temperature-40???70 ??? (-40???158 ???)
Operating Humidity10???90% RH non-condensing
Storage Humidity5???90% RH non-condensing

Specifications

SKUWAP-TPLINK EAP610 INDOOR
ButtonReset
MountingCeiling /Wall Mounting (Kits included) Junction Box Mounting
Frequency2.4 GHz and 5 GHz
Interface1?? Gigabit Ethernet (RJ-45) Port
Omada AppYes
Signal Rate5 GHz: Up to 1201 Mbps 2.4 GHz: Up to 574 Mbps
Antenna TypeInternal Omni Antenna 2.4 GHz: 2?? 4 dBi 5 GHz: 2?? 5 dBi
Cloud AccessYes, through: OC300 OC200 Omada Software Controller Omada Cloud-Based Controller (Supported by EAP610 V1, V2, V2.2 and above, while is not supported by EAP610 V3)
Email AlertsYes
Power SupplyV2, V2.2: 802.3at PoE 48 V Passive PoE 12 V / 1.5 A DC (Power Adapter included) V3: 802.3af/at PoE 12V/1A DC (Power Adapter included)
Source Categorynetworking/home-networking/access-points-bridges
Power ConsumptionV2 and V2.2: EU: 13.7 W (For PoE); 12.3 W (for DC) US: 14.2 W (For PoE); 12.8 W (for DC)
Wireless SecurityCaptive Portal Authentication?? Access Control Wireless Mac Address Filtering Wireless Isolation Between Clients SSID to VLAN Mapping Rogue AP Detection 802.1X Support WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
LED ON/OFF ControlYes
Transmission PowerCE: <20 dBm(2.4 GHz, EIRP) <23 dBm(5 GHz band1/2, EIRP) <25 dBm (5 GHz band3) FCC: <25 dBm (2.4 GHz) <25 dBm (5 GHz)
Wireless Functions1024-QAM 4?? Longer OFDM Symbol OFDMA Multiple SSIDs (Up to 16 SSIDs, 8 for each band) Enable/Disable Wireless Radio Automatic Channel Assignment Transmit Power Control (Adjust Transmit Power on dBm) QoS(WMM) MU-MIMO Seamless Roaming ?? Omada Mesh?? Band Steering Load Balance Airtime Fairness Beamforming Rate Limit Reboot Schedule Wireless Schedule Wireless Statistics based on SSID/AP/Client
Wireless StandardsIEEE 802.11ax/ac/n/g/b/a
Centralized ManagementOmada Cloud-Based Controller (Supported by EAP610 V1, V2, V2.2 and above, while is not supported by EAP610 V3) Omada Hardware Controller OC300 Omada Hardware Controller OC200 Omada Software Controller
Dimensions ( W X D X H )V2 and above: 6.3 ?? 6.3 ?? 1.3 in (160 ?? 160 ?? 33.6 mm)
Wireless Client Capacity250+**
Management MAC Access ControlYes
