Ubiquiti Surge Suppressor/Protector, Plug and Play Installation, ESD Protection, Two Ethernet Jacks, Compatible with Gigabit Networks | ETH-SP-G2

FromOMR 7.252
Ubiquiti Surge Suppressor/Protector, Plug and Play Installation, ESD Protection, Two Ethernet Jacks, Compatible with Gigabit Networks | ETH-SP-G2—
OMR 7.252
  • Fast delivery

    Ships in 2–4 business days across Oman.

  • Easy returns

    30-day money-back guarantee, no fuss.

  • Secure checkout

    Encrypted payments you can trust.

Description

Outdoor Ethernet cables acts as unintentional "antennas" for electrostatic discharge and lightning-induced surges. The ETH-SP-G2 acts as a high-speed barrier, identifying harmful voltage spikes and clamping them before they reach your expensive network hardware. It supports Gigabit Ethernet speeds and is fully compatible with both PoE and non-PoE network segments, making it a universal shield for almost any outdoor networking setup.



Rugged, Weather-Resistant Design

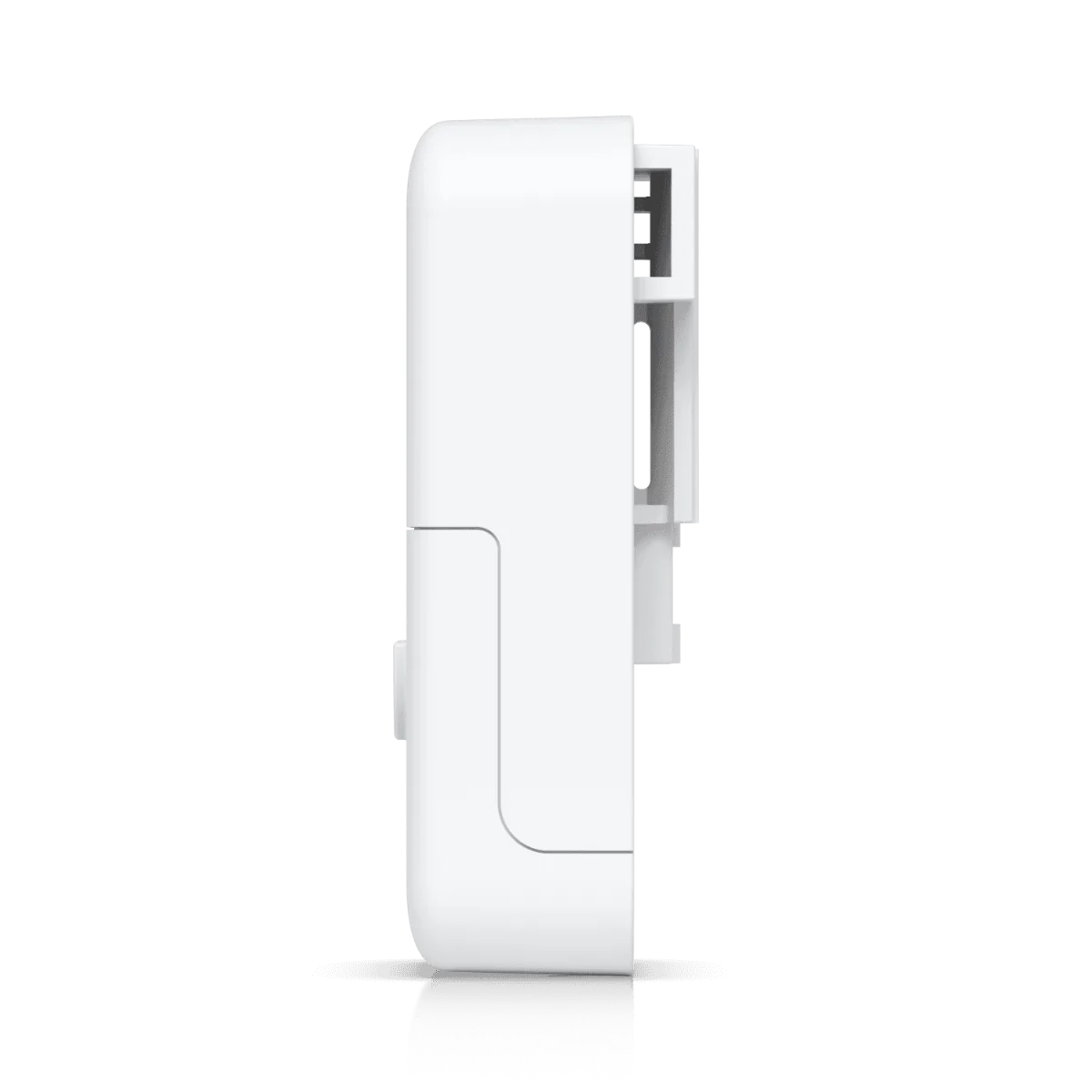

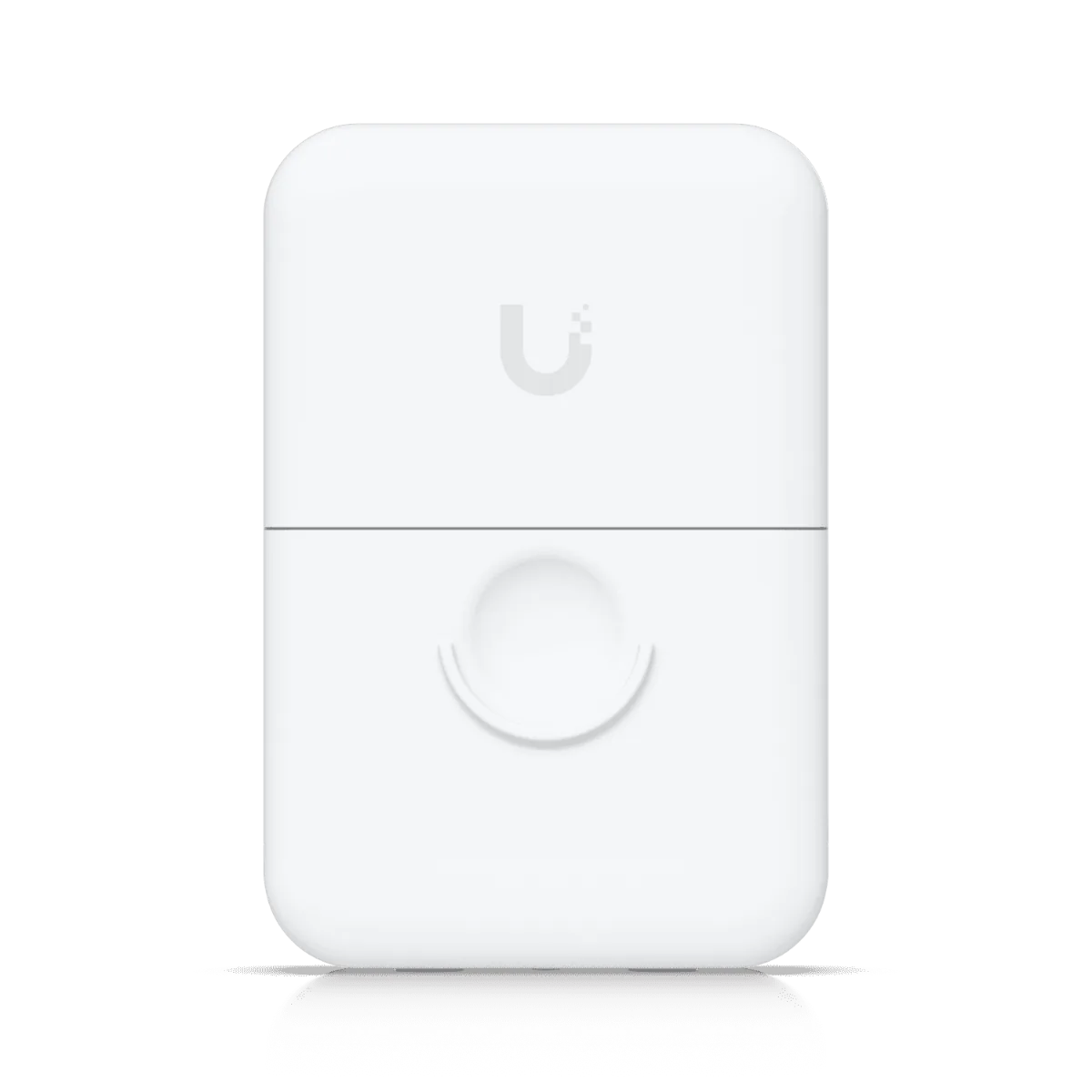

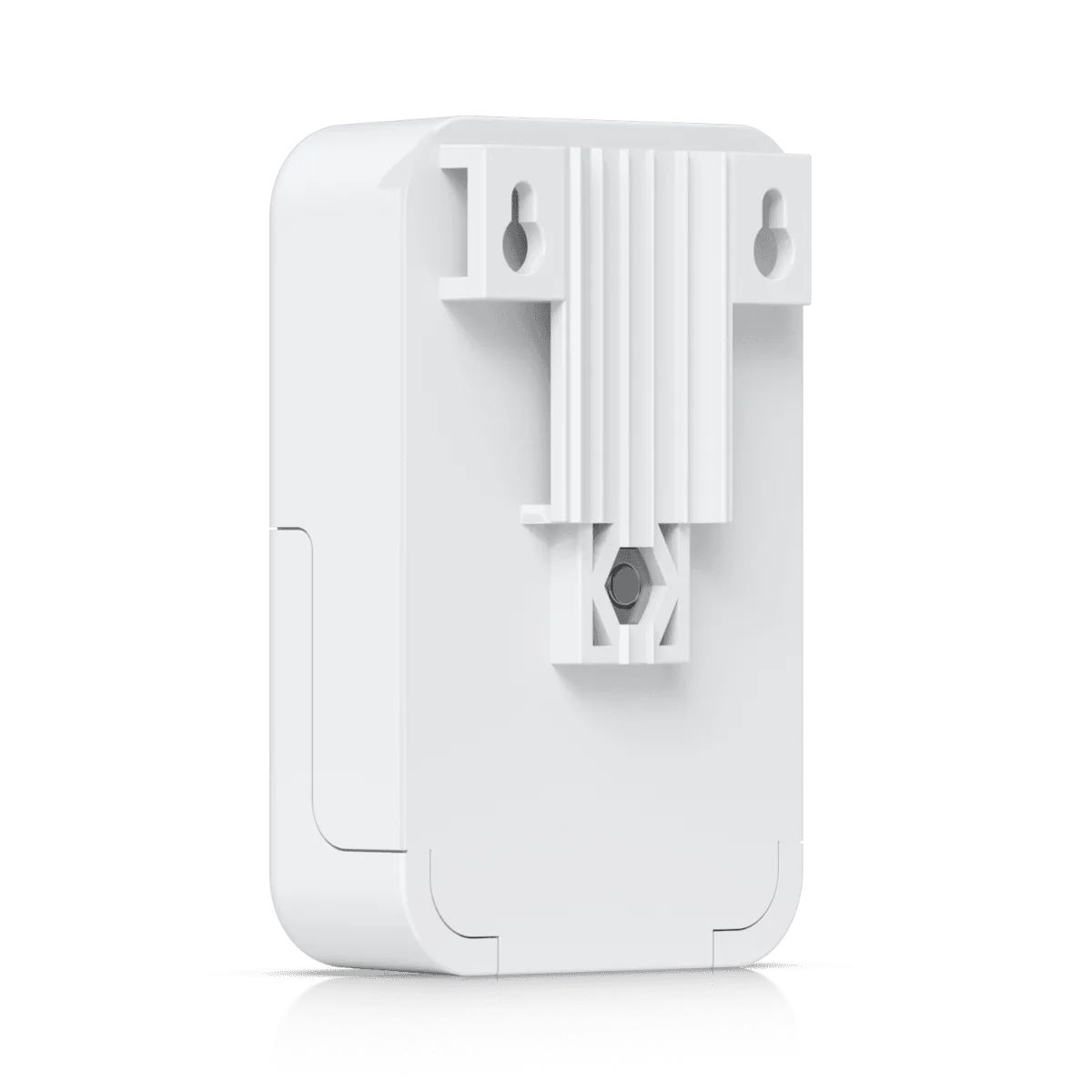

Engineered for the demands of outdoor deployment, the G2 model features a compact, weather-resistant casing that resists mechanical stress and environmental elements. Its small footprint allows for easy mounting near the equipment or at the point of cable entry into a structure. It is designed to be a "set-it-and-forget-it" component that provides vital infrastructure protection without requiring active maintenance.



Code Compliance and Reliability
In many regions, building codes require outdoor network installations to have surge protection at the point of building entry to prevent fires or equipment destruction. The ETH-SP-G2 is designed to meet these requirements easily and reliably. By installing two protectors per cable run, you create a tiered defense strategy: the outdoor protector absorbs the brunt of the surge near the device, while the secondary protector at the entry point ensures any remaining transient voltage is neutralized before entering your home or business network.

Specifications

SKUUNIFI ETH-SP-G2
Weight80 g (2.8 oz)
Dimensions91 x 61 x 32.5 mm (3.6 x 2.4 x 1.3")
PoE SupportYes
WeatherproofingIPX5
Source Categorynetworking/accessories-4/accessories-3
Max. Capacitance1.0 pF @ 1 MHz
Discharge Current10kA+
ESD/EMP ProtectionAbsorbing transient current with response to surge voltage from 100V/s to 1kV/s
Data Line ProtectionUp to 2.5 Gbps

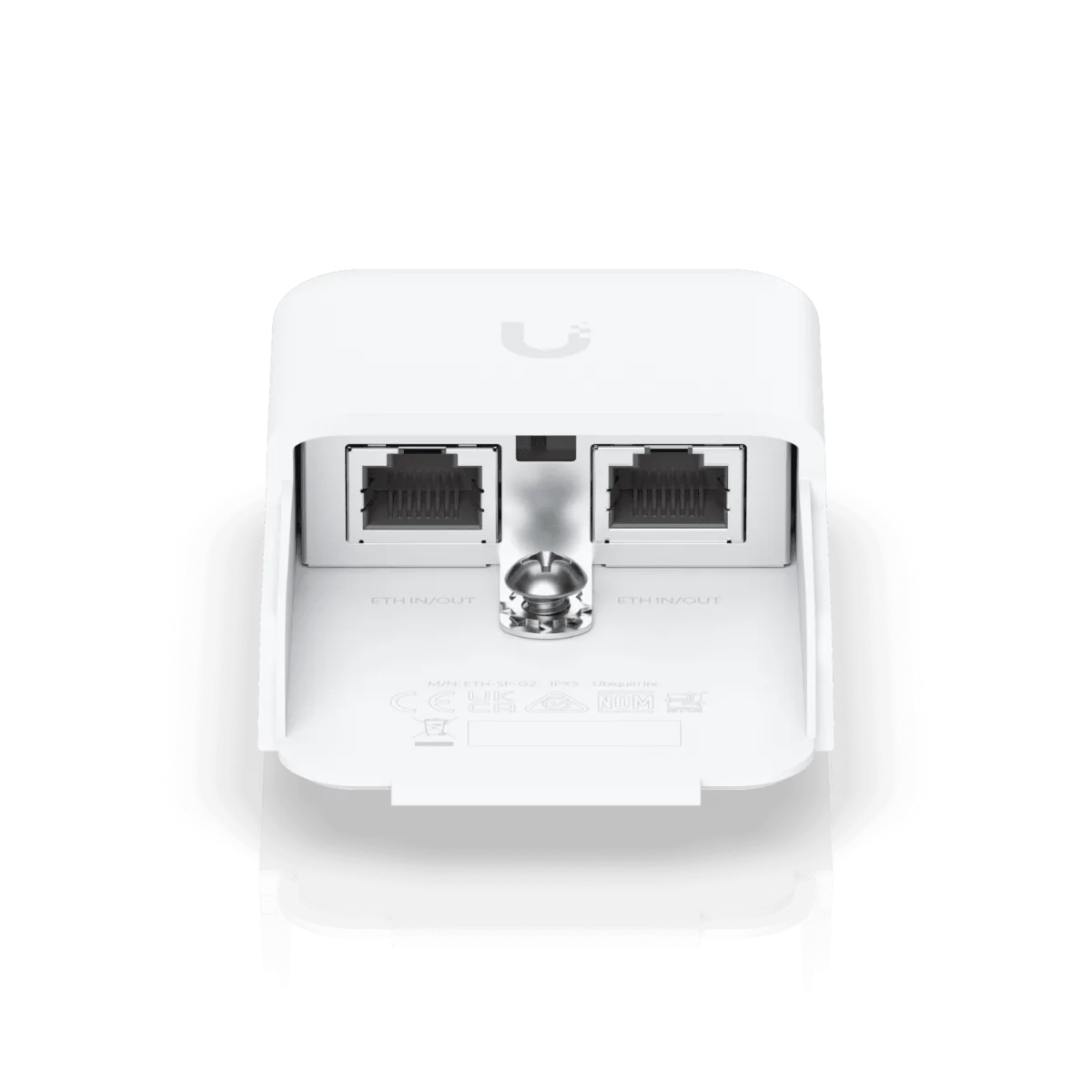

Networking Interface(2) RJ45 female connectors
DC Spark Over Voltage90V @ 100V/s
Ambient Operating Humidity10 to 90% noncondensing
Max. Insulation Resistance1G ohm @ 50V
Ambient Operating Temperature-30 to 65 C (-22 to 149 F)
Max. Impulse Spark Over Voltage700V @ 1kV/s
Shock And Vibration CertificationETSI300-019-1.4 Standard
